Componenti modulari di prova OpenCOTS

Interchangeable Base Plates, Cold Wall Kits, and Accessories

Dettagli del prodotto

Caratteristiche del prodotto

The OpenCOTS Modular Test Setup is engineered specifically to support VPX card validation, accommodating a wide range of 3U and 6U VPX configurations through its interchangeable components. The system enables comprehensive testing of VPX modules including shock and vibration qualification, thermal validation of conduction-cooled and heat frame designs, and single-board functional verification.

Configured for rugged embedded applications, the assembled fixture supports common military and aerospace shock and vibration standards while maintaining compatibility with standard VPX mechanical envelopes and mounting patterns.

Specifiche del materiale

Cold Walls/Base Plates:
AL6061-T6511
Chem Film Type II, Class 1A

Hardware:
Stainless Steel

Vantaggio WaveTherm

OpenCOTS™ test equipment, based on international open standards, facilitate rapid module & system development and advance our mission to support customers with industry-leading mechanical packaging knowledge testing capability.

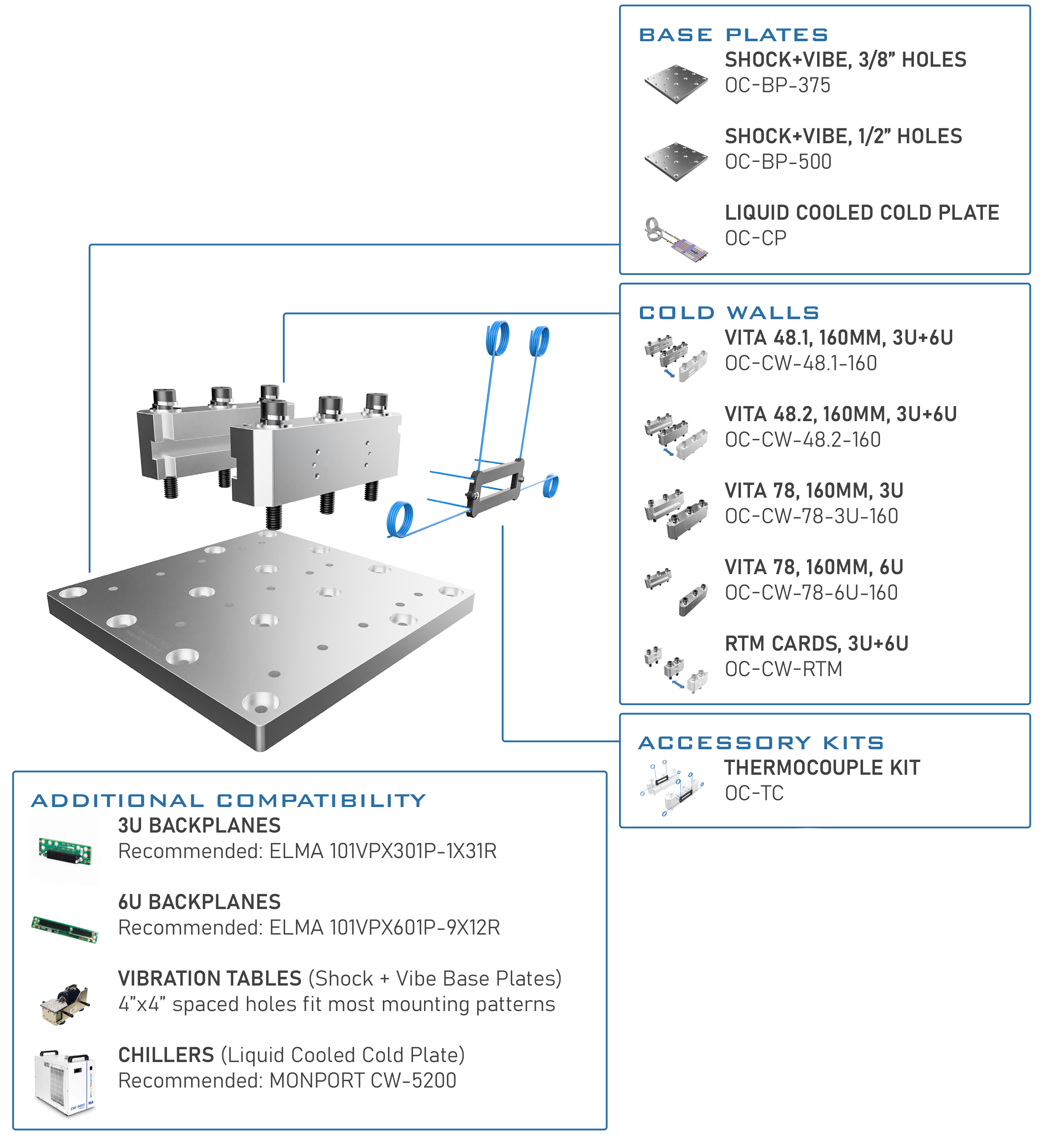

Select Components

Il tuo carrello
Variante	Totale varianti	Quantità	Prezzo	Datasheet
Piastra di Base / Foro di montaggio 3/8" Shock+VibeOC-BP-375	Piastra di Base / Foro di montaggio 3/8" Shock+VibeOC-BP-375 $650.00/ciascuno	$0.00	Quantità	$650.00/ciascuno	$0.00

Piastra di Base / Foro di montaggio 1/2" Shock+VibeOC-BP-500	Piastra di Base / Foro di montaggio 1/2" Shock+VibeOC-BP-500 $650.00/ciascuno	$0.00	Quantità	$650.00/ciascuno	$0.00

Piastra di Base / Piastra Fredda Raffreddata a LiquidoOC-CP	Piastra di Base / Piastra Fredda Raffreddata a LiquidoOC-CP $1,275.00/ciascuno	$0.00	Quantità	$1,275.00/ciascuno	$0.00

Muri Freddi / VITA 48.1 (Configurabile 3U+6U)OC-CW-48.1-160	Muri Freddi / VITA 48.1 (Configurabile 3U+6U)OC-CW-48.1-160 $675.00/ciascuno	$0.00	Quantità	$675.00/ciascuno	$0.00

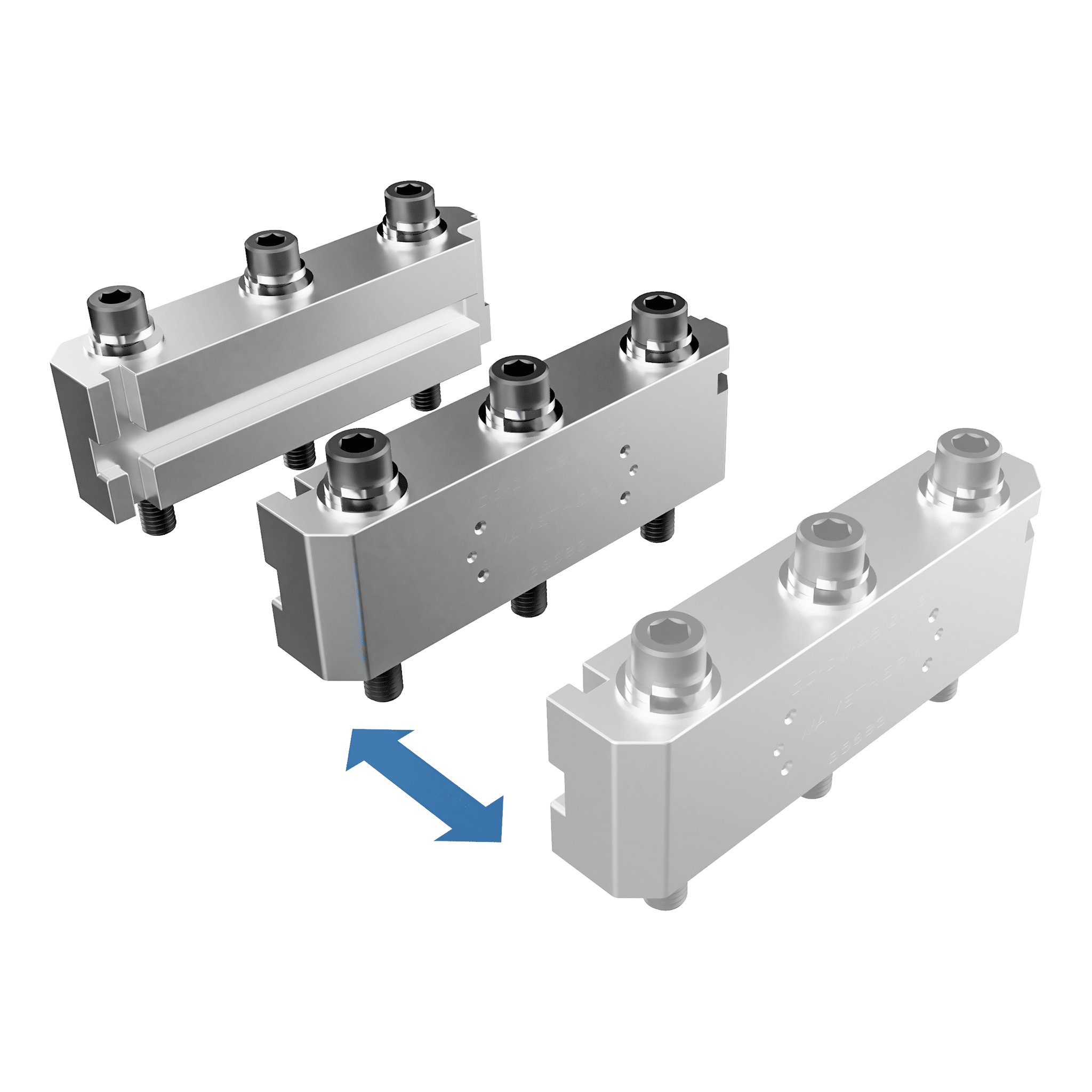

Muri Freddi / VITA 48.2 (Configurabile 3U+6U)OC-CW-48.2-160	Muri Freddi / VITA 48.2 (Configurabile 3U+6U)OC-CW-48.2-160 $675.00/ciascuno	$0.00	Quantità	$675.00/ciascuno	$0.00

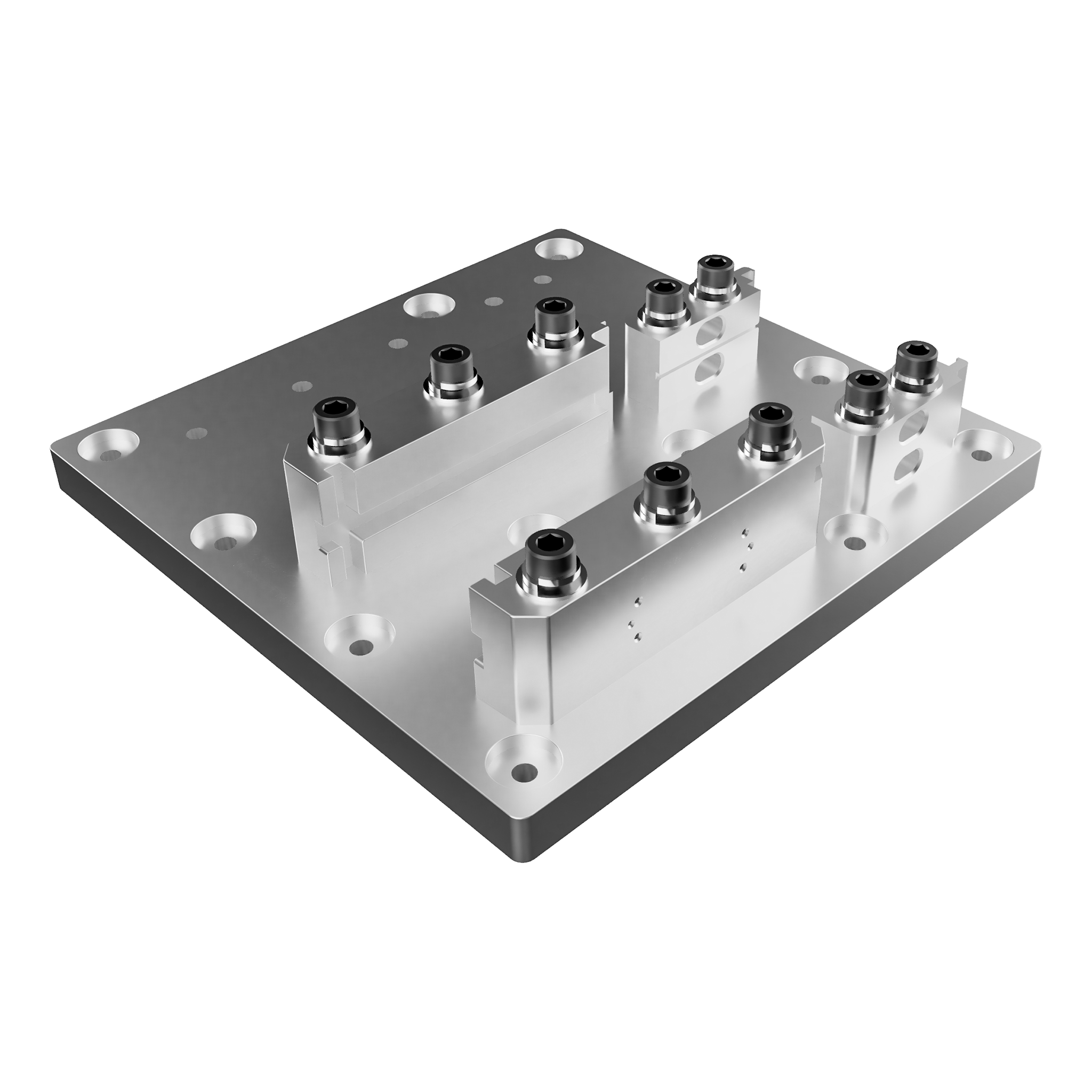

Muri Freddi / RTM (Configurabile 3U+6U)OC-CW-RTM	Muri Freddi / RTM (Configurabile 3U+6U)OC-CW-RTM $250.00/ciascuno	$0.00	Quantità	$250.00/ciascuno	$0.00

Muri Freddi / VITA 78 3UOC-CW-78-160-3U	Muri Freddi / VITA 78 3UOC-CW-78-160-3U $675.00/ciascuno	$0.00	Quantità	$675.00/ciascuno	$0.00

Muri Freddi / VITA 78 6UOC-CW-78-160-6U	Muri Freddi / VITA 78 6UOC-CW-78-160-6U $675.00/ciascuno	$0.00	Quantità	$675.00/ciascuno	$0.00

Accessorio / Kit TermocoppiaOC-TC	Accessorio / Kit TermocoppiaOC-TC $300.00/ciascuno	$0.00	Quantità	$300.00/ciascuno	$0.00
