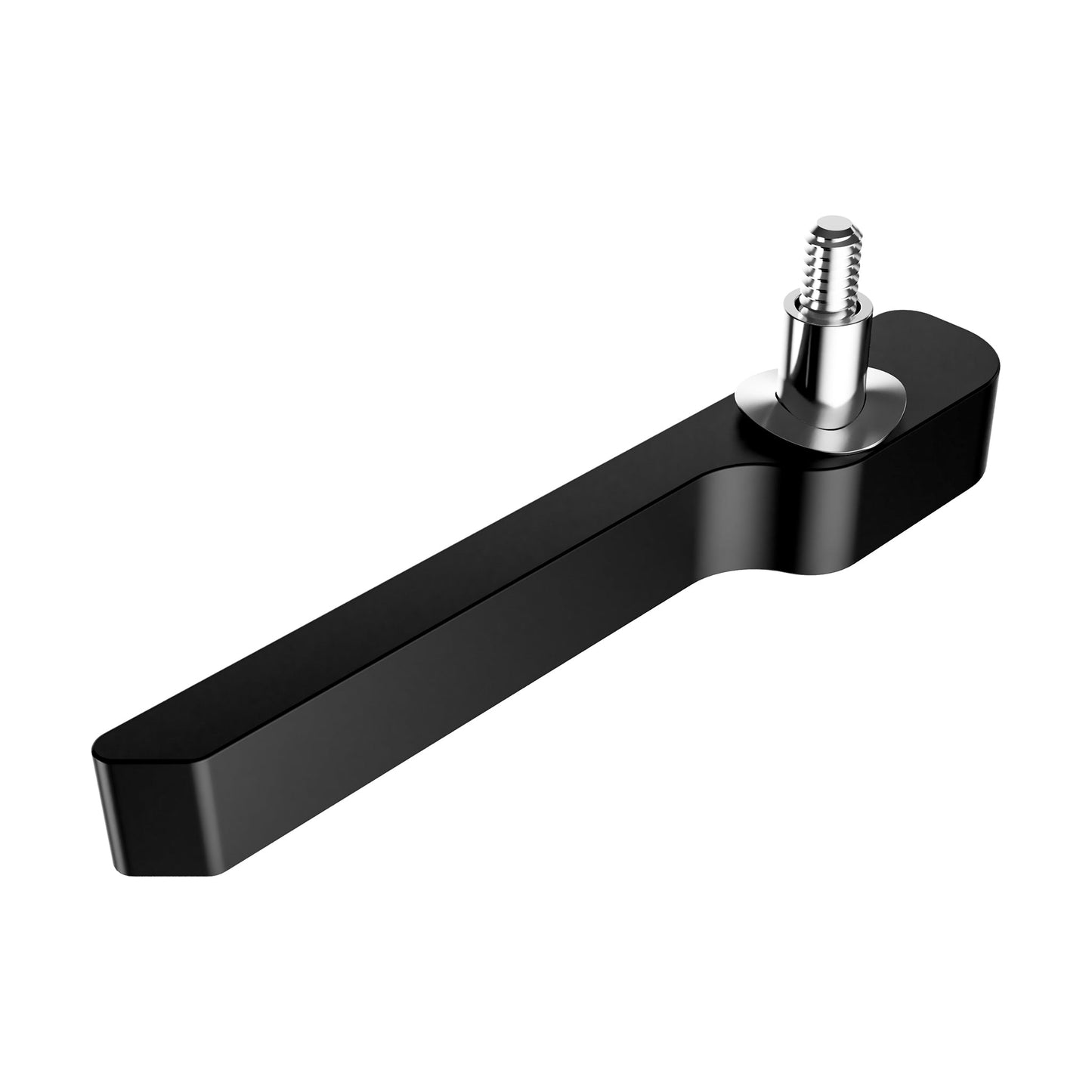

  • 3U Universal Injector/Ejector (#14121), metal handle hardware component for PCB removal, Black Anodized Finish
  • 3U Universal Injector/Ejector (#14121), metal handle hardware component for PCB removal, Black Anodized Finish
1 2
  • International Standards Organization 9001 Complaince Badge
  • A descriptive alt text for the image
  • A descriptive alt text for the image
  • A descriptive alt text for the image
  • A descriptive alt text for the image

14121-BA

Maniglia di iniezione/espulsione con orientamento universale

Maniglia di iniezione/espulsione sostituibile per design cPCI e VME/VPX. Progettato ergonomicamente per fornire un vantaggio meccanico all'ingresso e all'uscita da uno slot del telaio.

Disponibile (Est: 8-16 settimane)

$21.87 USD/ea
$21.87 USD
In offerta Esaurito
Visualizza dettagli completi

Dettagli del prodotto

caratteristiche del prodotto

0.19” Max Ejection
3.3x Mechanical Advantage
Up to 160 lbs
Insertion/Extraction force
VME and cPCI Compliant
Universal / Reversible
Ergonomic Design
3d Models Available

Specifiche del materiale

Body: Aluminum AL7075-T7351

Hardware: 300 Series Stainless Steel (passivated per AMS - 2700)

Vantaggio WaveTherm

The OpenCOTS 3U ejectors represent an innovative approach to create a field replaceable inject/eject handle for cPCI and VME/VPX designs. The ejector handles are ergonomically designed to provide a mechanical advantage entering and exiting a chassis slot.

or Log in for full access

Datasheet
