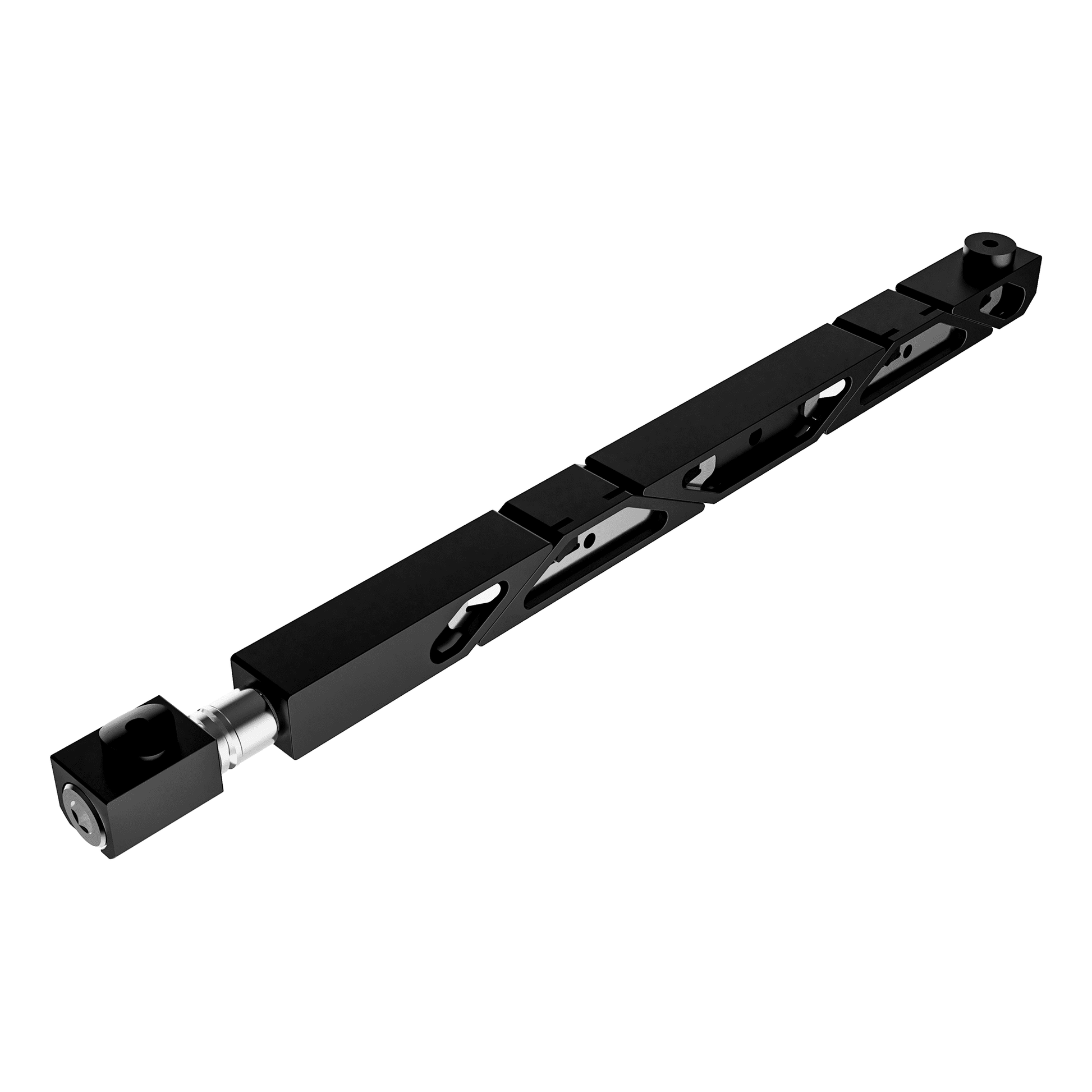

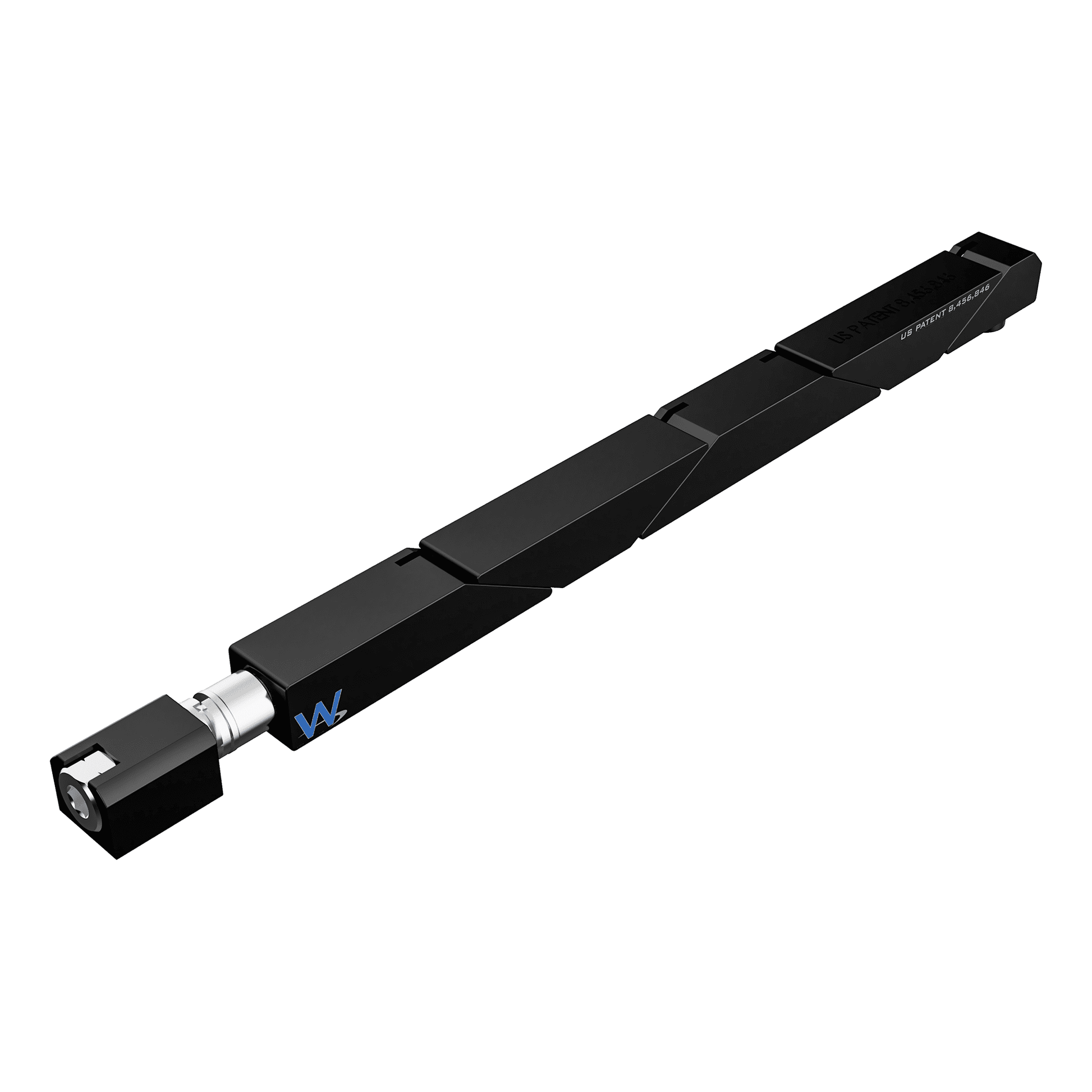

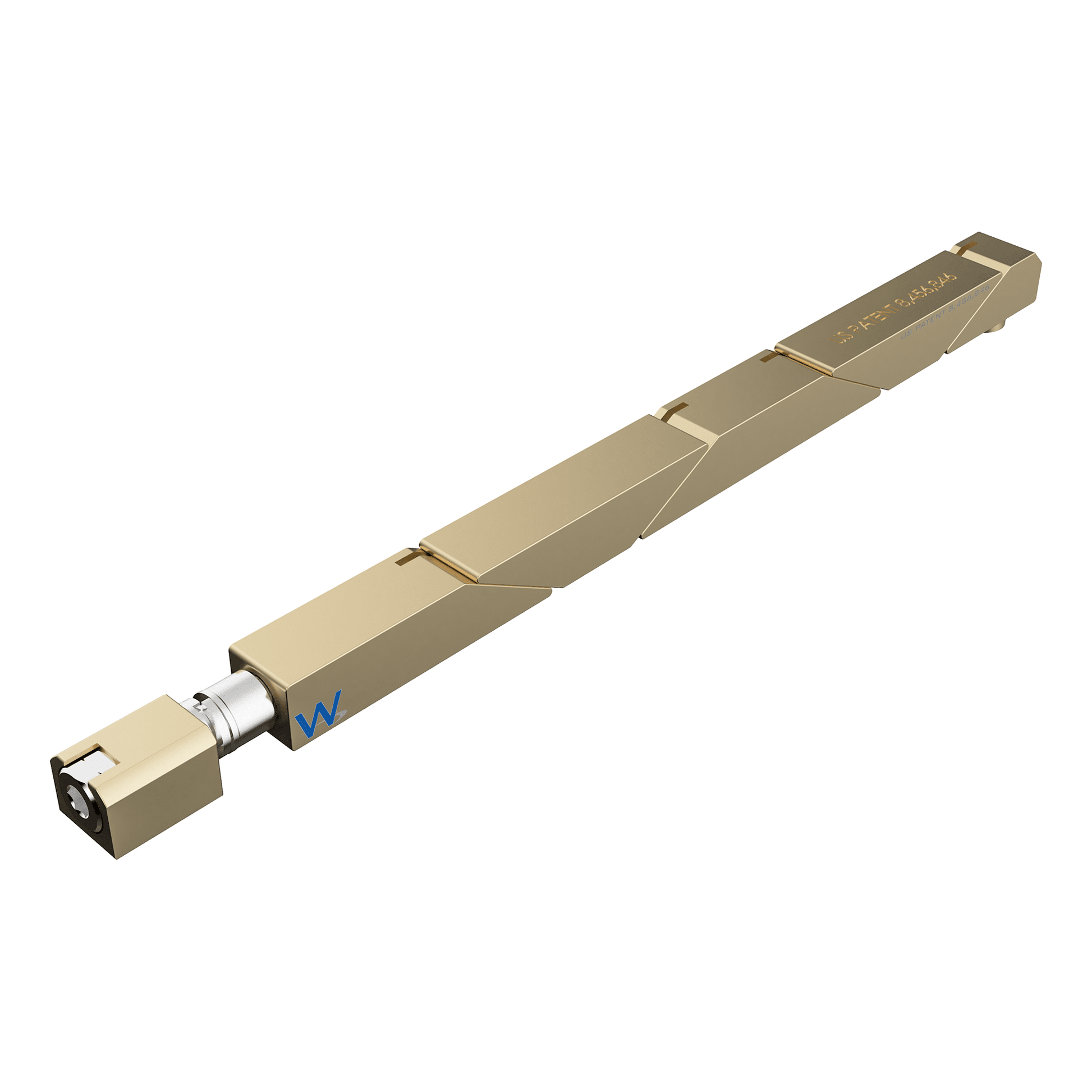

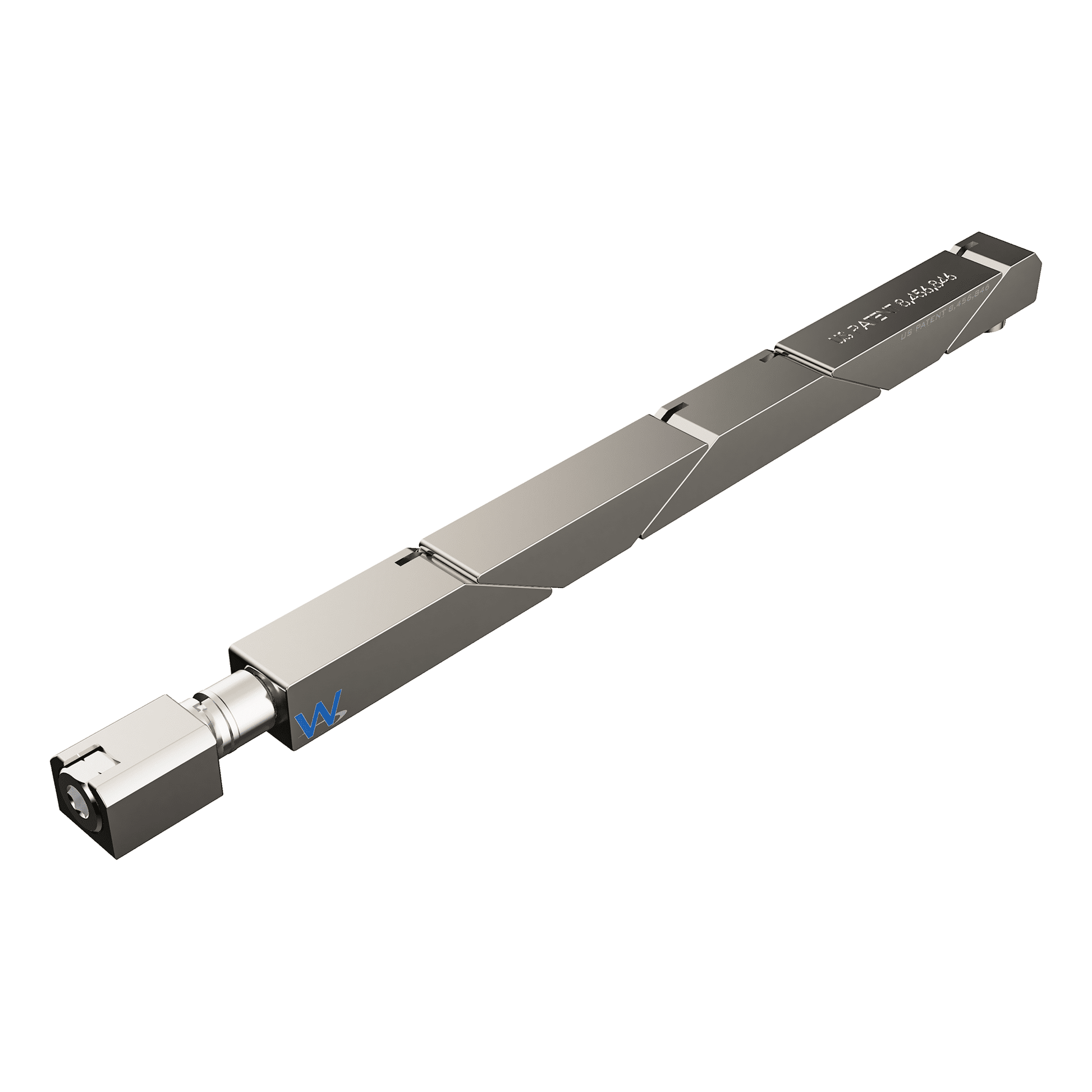

SW5-455-275-300 Max Force Big Boss Belleville n°6

1000lb Clamping Force
Mass: 23g
#6 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for VITA Specifications
Models Available for Download
Torque to 6–10 in-lbs

Active Wedge Segments: 6061-T6511
Front Mounting Block: 7075-T7351
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)
Helicoil Wire Insert:: Nitronic 60

The SOLIDWEDGE™ design provides three times the thermal contact area of conventional wedge locks.
The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces,
significantly improving thermal performance.
The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.
