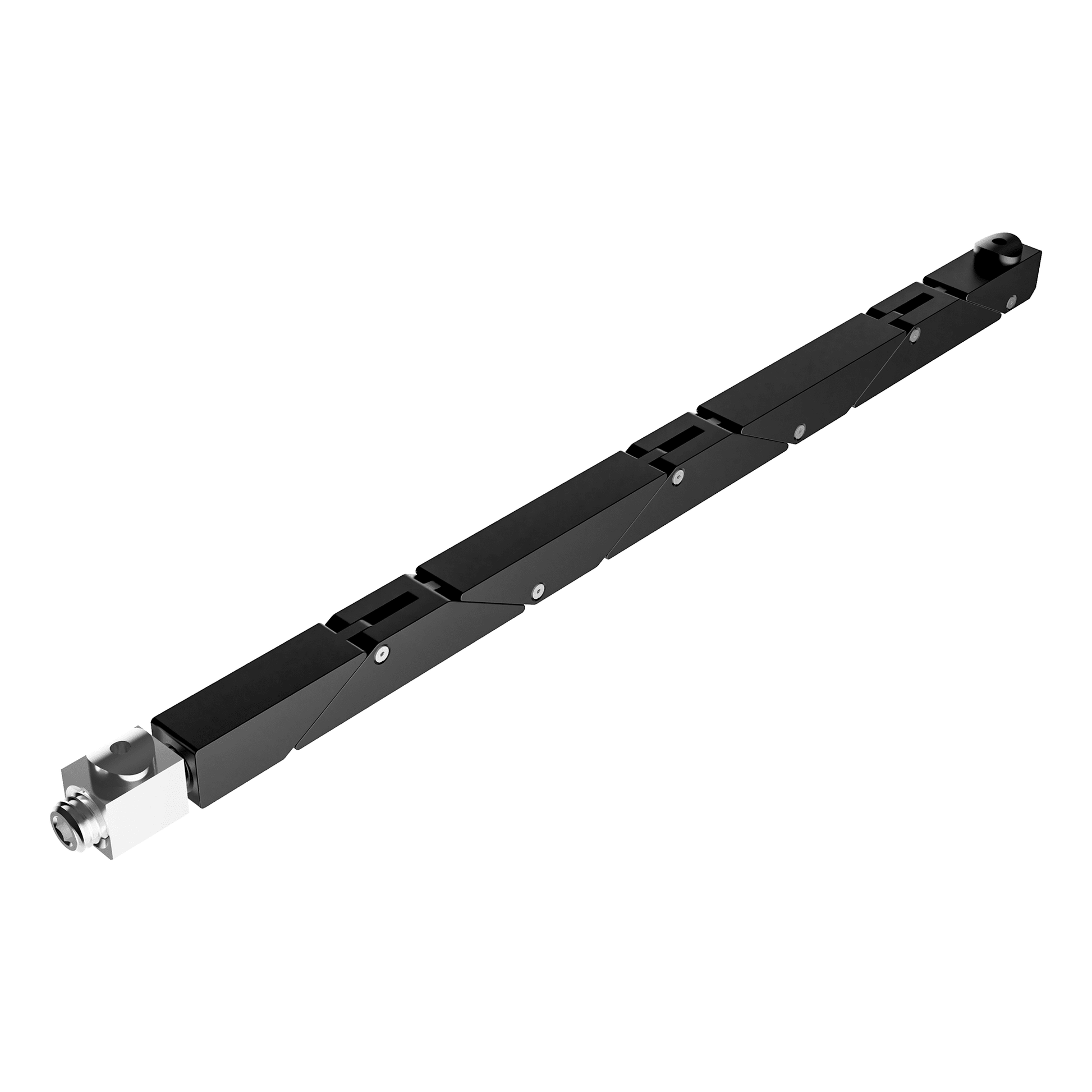

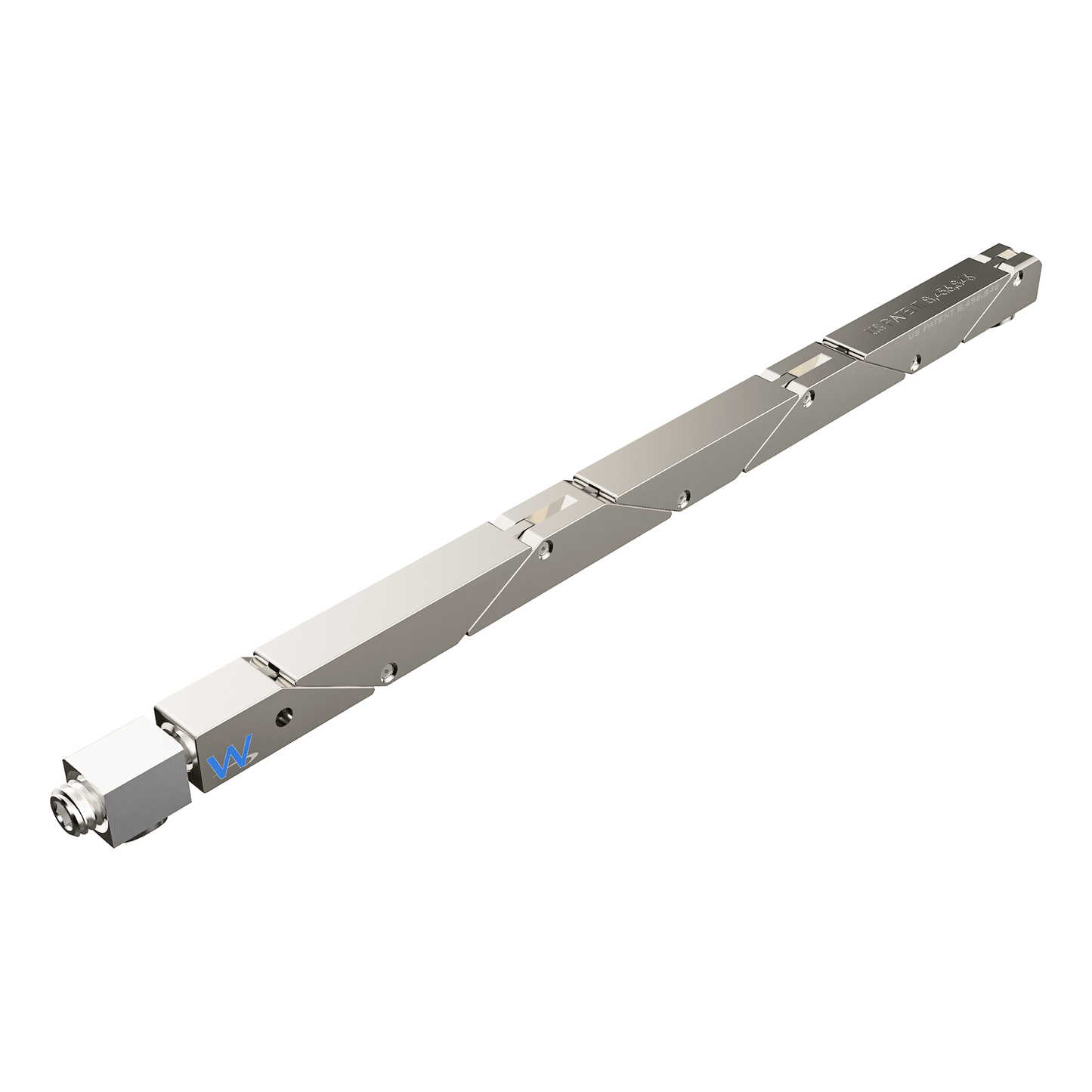

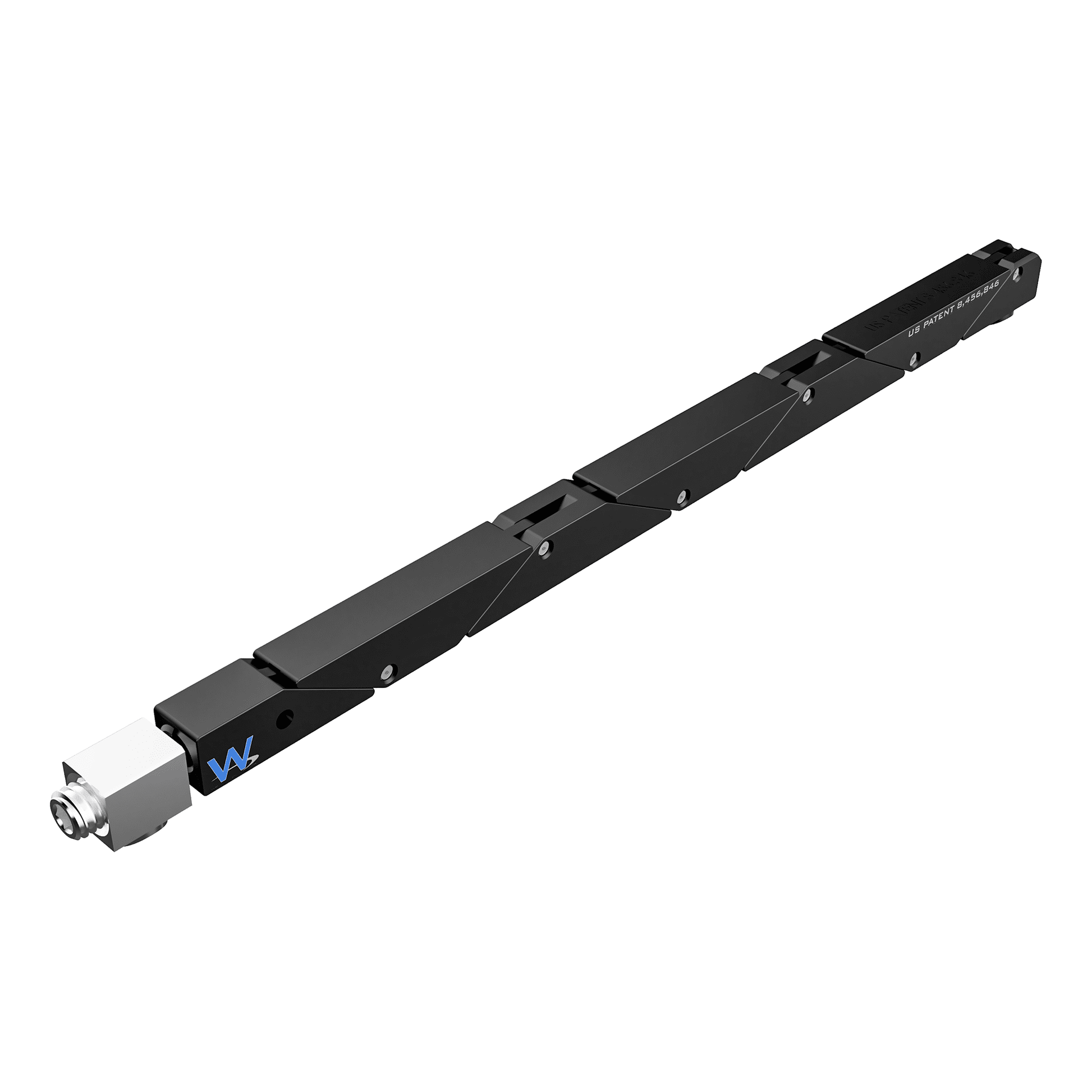

SWD8-525-270-250 Grand Patron VERROUILLAGE RAPIDE
SKU:SWD8-525-270-250-332-BA
Vis de fixation à double filetage pour un retrait/une installation 2 fois plus rapide. Les filetages autobloquants EMUGE Self-Lock™ réduisent les corps étrangers en éliminant les dispositifs de verrouillage secondaires.
Insert en fil Hélicoil
Force de serrage maximale de 1300 lb
8 segments actifs
Distance de montage de 5,25"
Hauteur du profil de 0,270"
Largeur du profil de 0,250"
Résistance thermique de 0,12 °C/W par bord de carte
En stock (Est: 8-10 semaines)
Impossible de charger la disponibilité du service de retrait
Détails du produit
Caractéristiques du Produit
1300 lb Clamping Force
Mass: 19 g
Zero Insertion Force
Low Profile Design for Thicker Heat Frame
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 8-15 in-lbs
Spécifications des matériaux
Active Wedge Segments: 6061-T6511
Double Threaded Screw and Front Block:
316 Series Stainless Steel
(passivated per AMS - 2700)
WaveTherm Avantage
The SOLIDWEDGE™ QUICK-LOCK wedgelock design uses a double threaded drive screw for 2X faster removal/installation. EMUGE Self-Lock™ locking threads reduce FOD by eliminating secondary locking hardware. The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.
The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.
The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.
Learn more by clicking the FAQ button in the product description.
