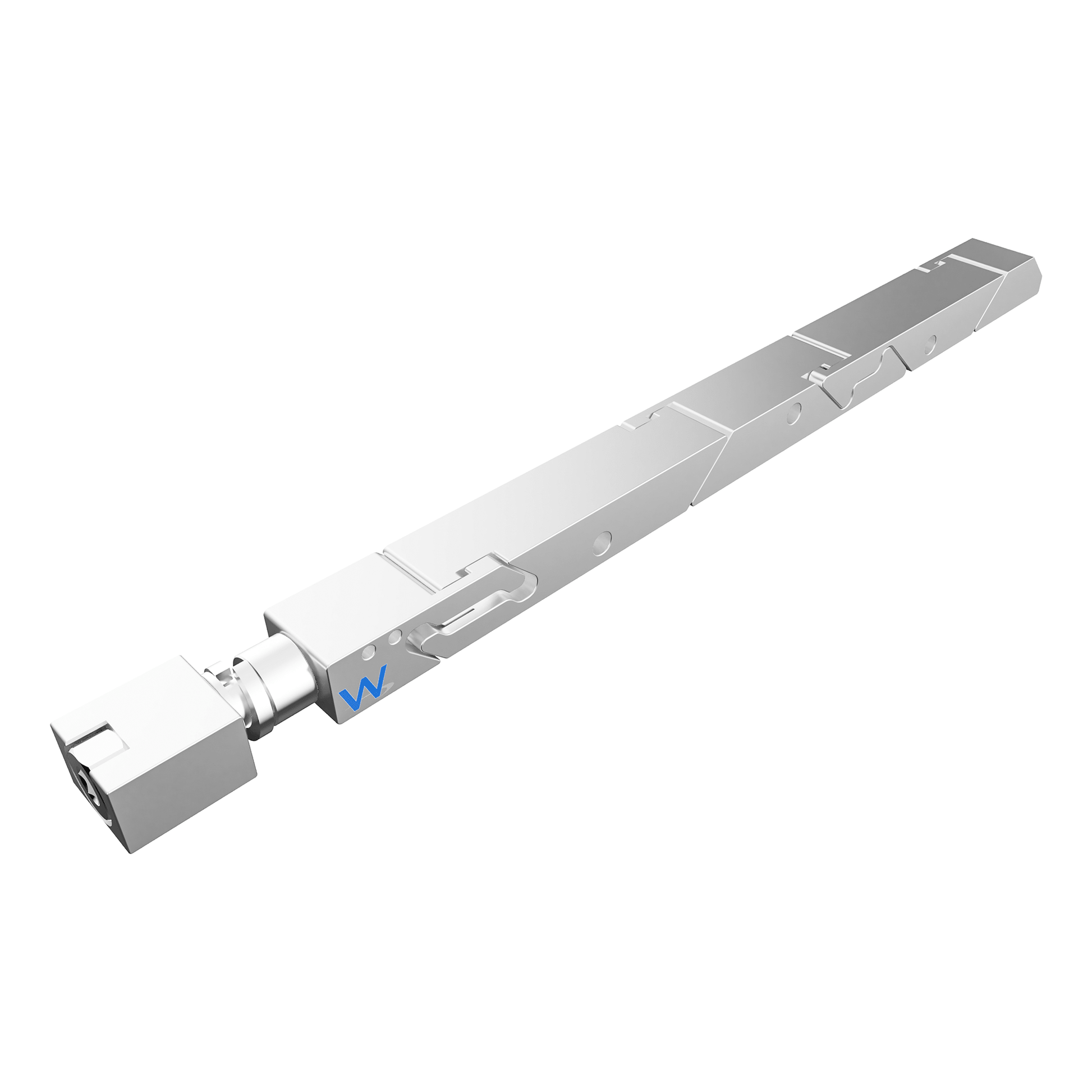

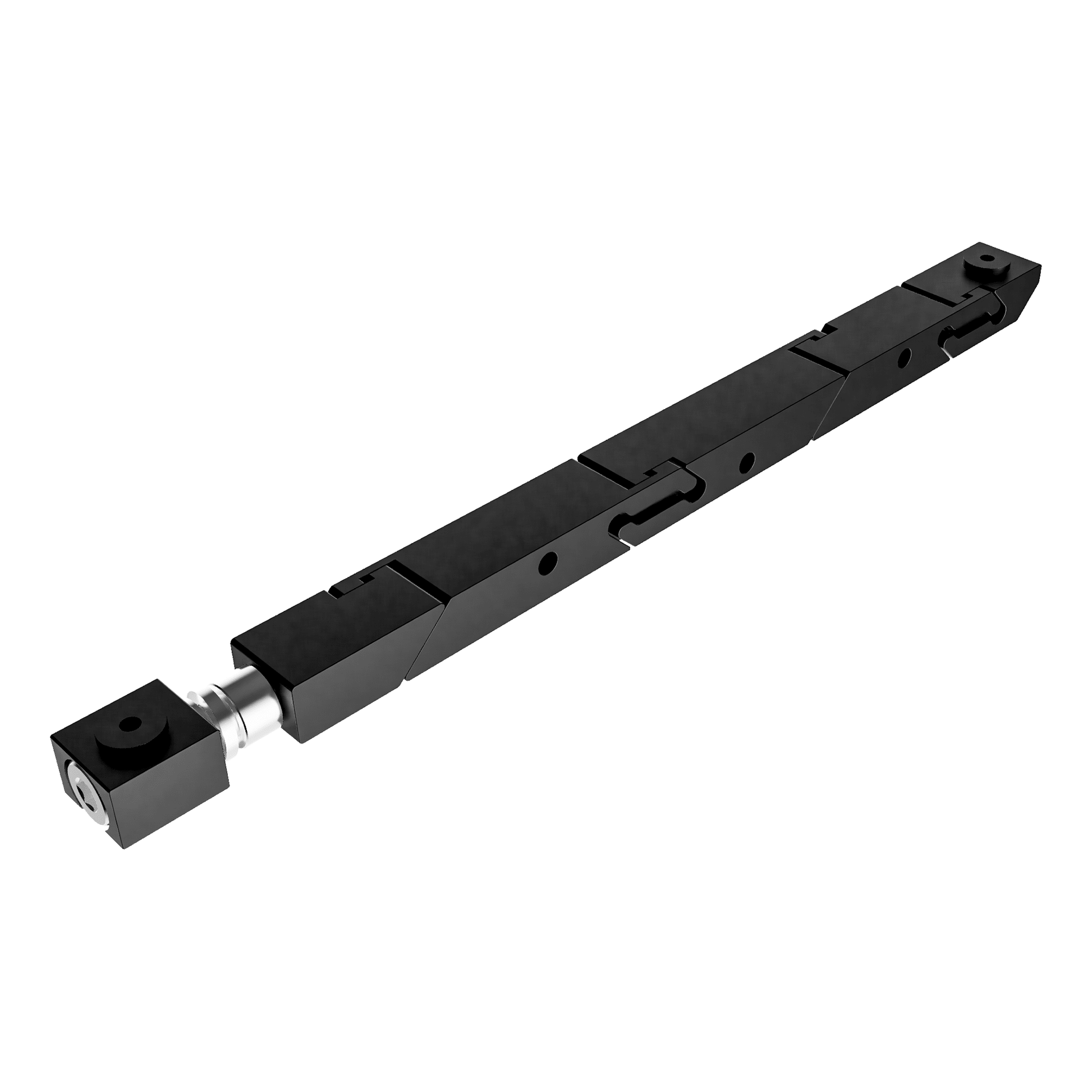

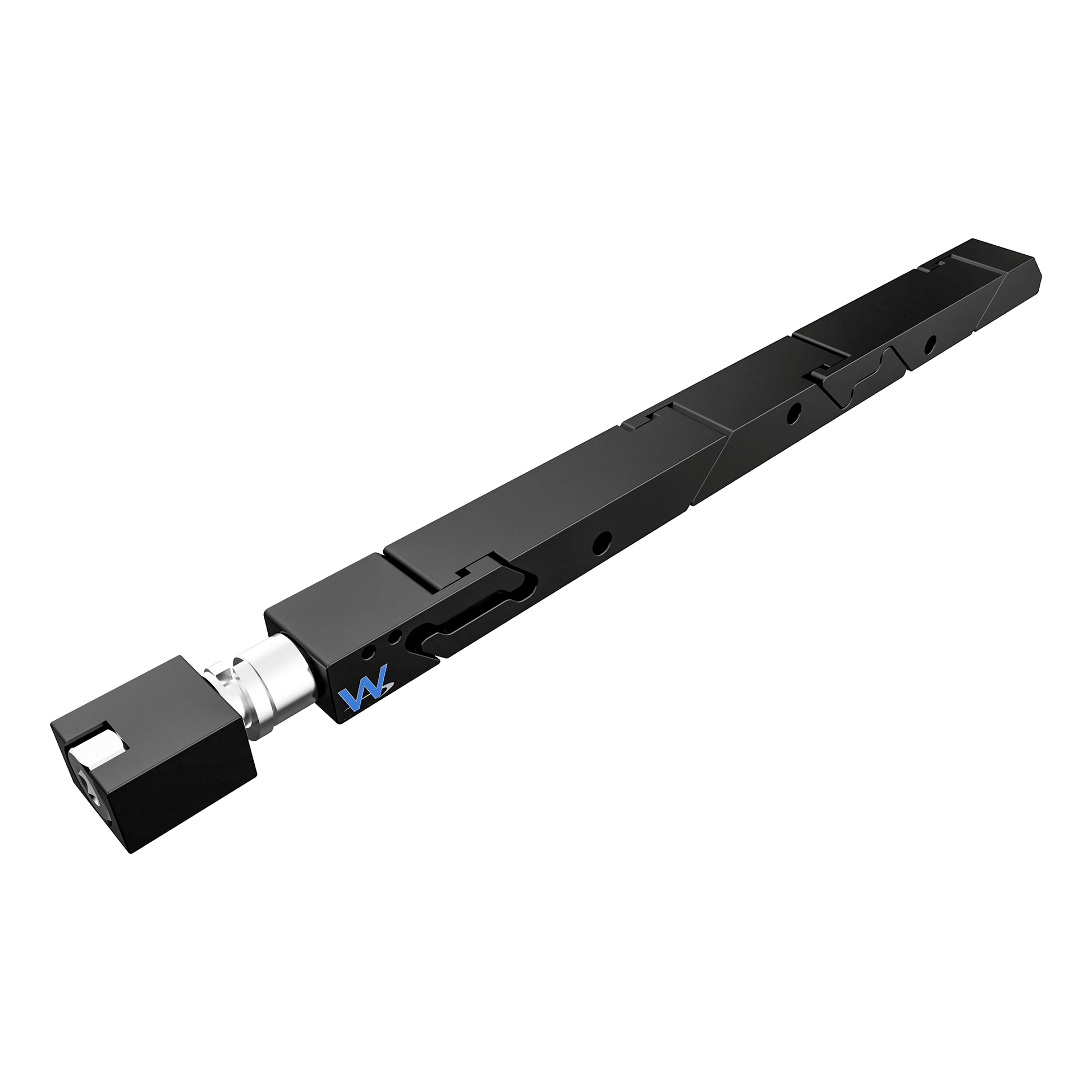

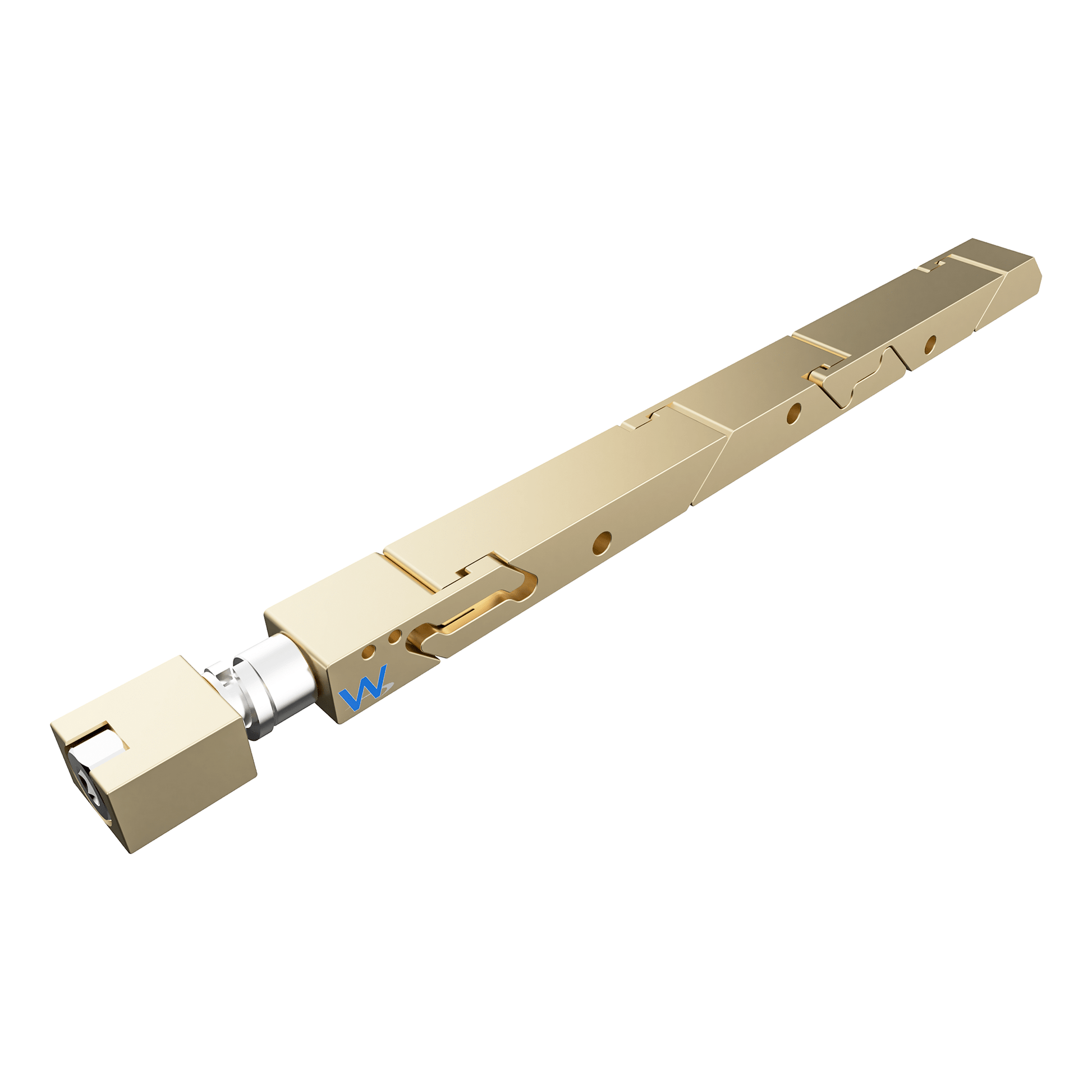

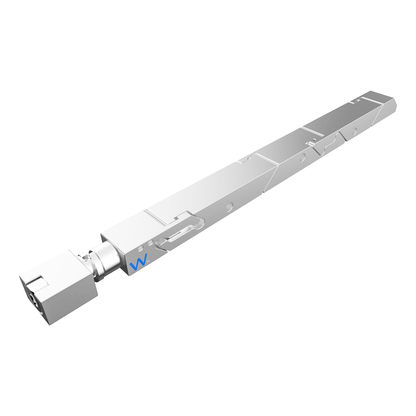

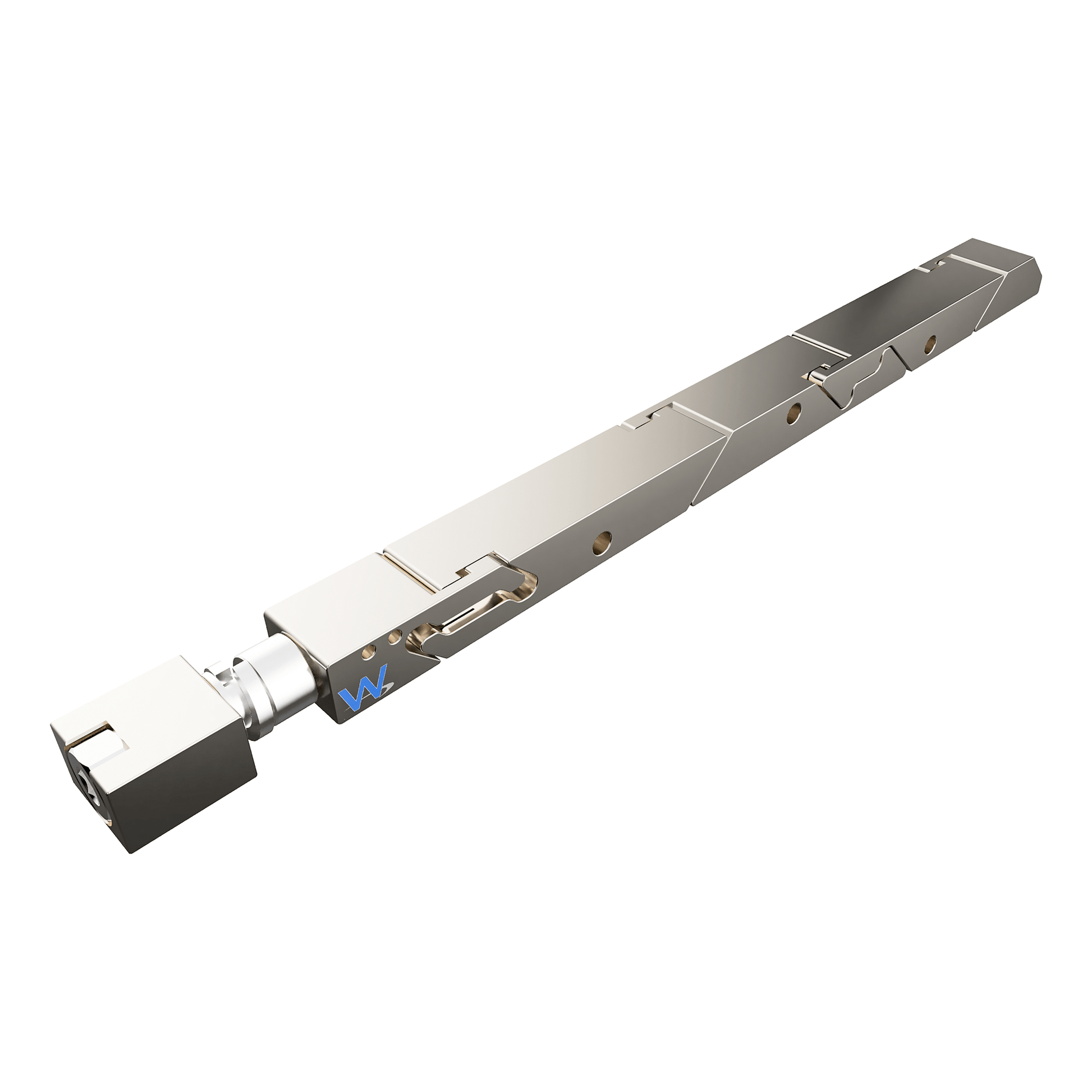

SW5-475-260-365 High Force

800 lb Clamping Force
Mass: 22 g
#8 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 8-15 in-lbs

Active Wedge Segments: 6061-T6511
Front Mounting Block: 7075-T7351
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.
