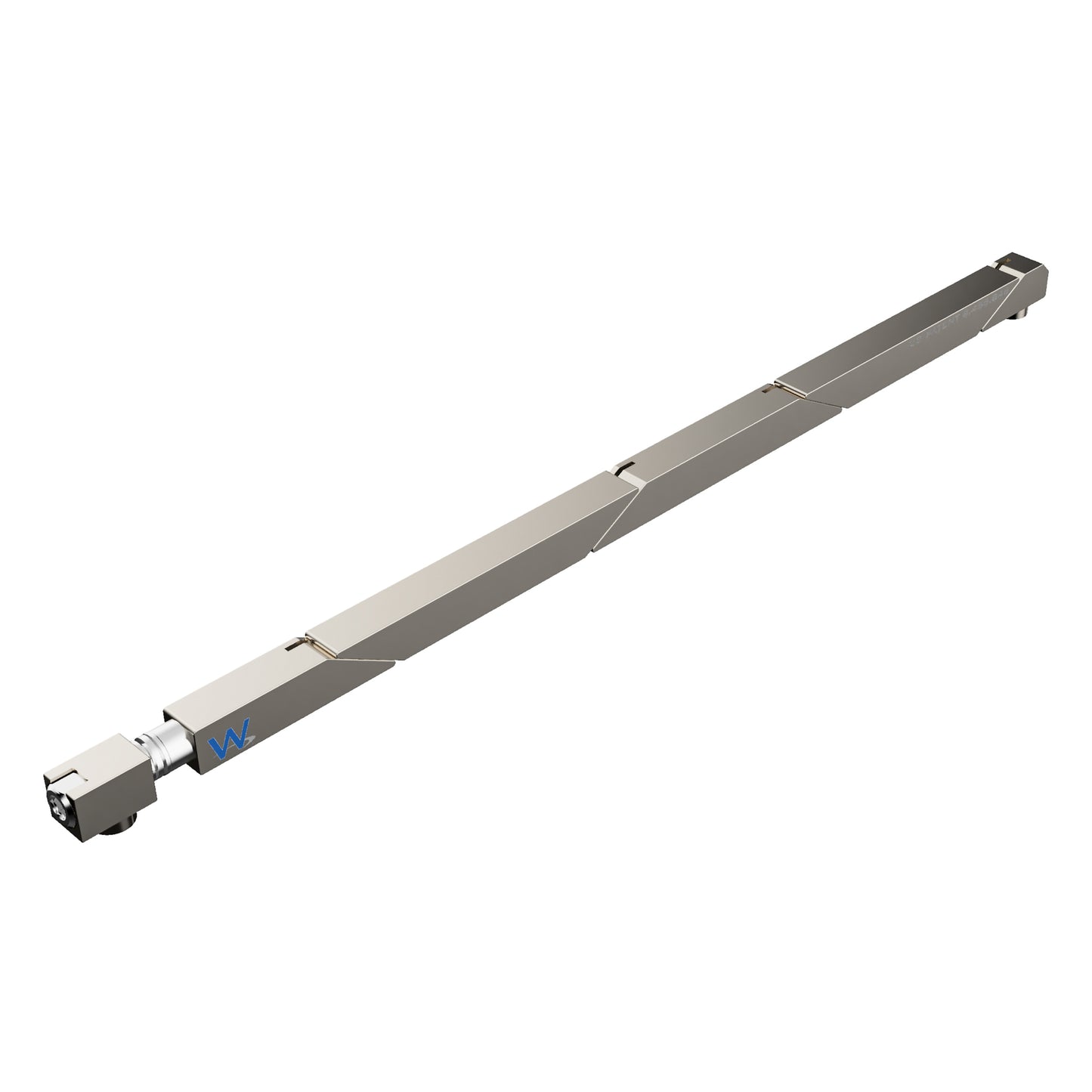

SW5-70-270-250 Max Force Big Boss

Μετάβαση στις πληροφορίες προϊόντος
1 από 5

SKU:SW5-70-270-250-332-BA-30D-B075

Σφήνα κίνησης ένθετου Helicoil
Μέγιστη δύναμη σύσφιξης 1000 lb
5 Ενεργά τμήματα
7" Απόσταση τοποθέτησης
Ύψος προφίλ 0,270"
0,250" Πλάτος προφίλ
0,1 °C/W Θερμική αντίσταση ανά άκρη κάρτας

Σε απόθεμα (Est: 8-16 Weeks)

Κανονική τιμή $106.67 USD/ea
Κανονική τιμή Τιμή έκπτωσης $106.67 USD
Έκπτωση Εξαντλήθηκε
Προβολή όλων των λεπτομερειών

Product Details

Product Features


1000 lb Clamping Force
Mass: 27 g
Helicoil Insert
#6 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 6-10 in-lbs

Material Specifications


Active Wedge Segments: 6061-T6511
Front Mounting Block: 7075-T7351
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)
Helicoil Wire Insert: Nitronic 60

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
