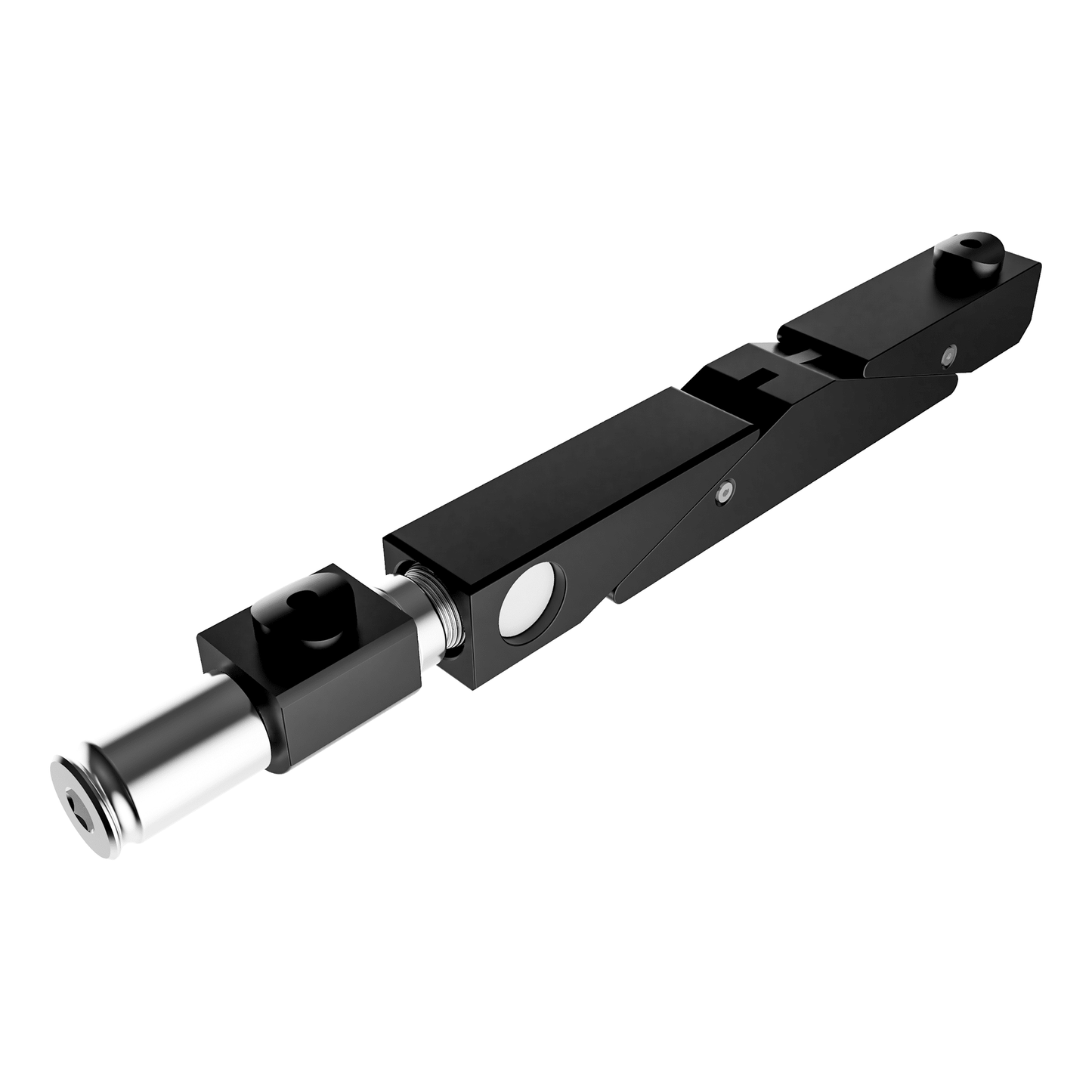

SWT3-27-330-330 Μέγιστη Δύναμη με Περιορισμό Ροπής (Εκτεταμένη Δοκιμή)

Torque Limited Expansion
Full Torque Contraction
Ideal for 2 Level Maintenance (2LM)
Audible + Tactile Ratchet Feedback
RoHS + REACH + ITAR Compliant
Low Profile Design
Torque Limiting Slip Clutch Ratchet
Mass: 17g
6/32 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for VITA Specifications
Models Available for Download

MECHANISM MATERIALS
Screw, Pin, Clip: 300 Series Stainless Steel (passivated per AMS - 2700)
Drive Head, Flat Washer: Nitronic 60
Plastic Washer: PEEK
Spring: 17-7 SS
Lubrication: MIL-PRF-27617, Vacuum

WEDGELOCK MATERIALS
Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Lock Nut: Nitronic 60

The Torque Limiting SOLIDWEDGE™ limits torque as the SOLIDWEDGE™ is expanded, creating consistent clamping forces for maintainers without the need for torque drivers or specialized tools. The slip clutch ratchet mechanism prevents over-tightening and provides audible feedback when the specified torque is reached. Torque is not limited in reverse, ensuring retraction of the SOLIDWEDGE™.
