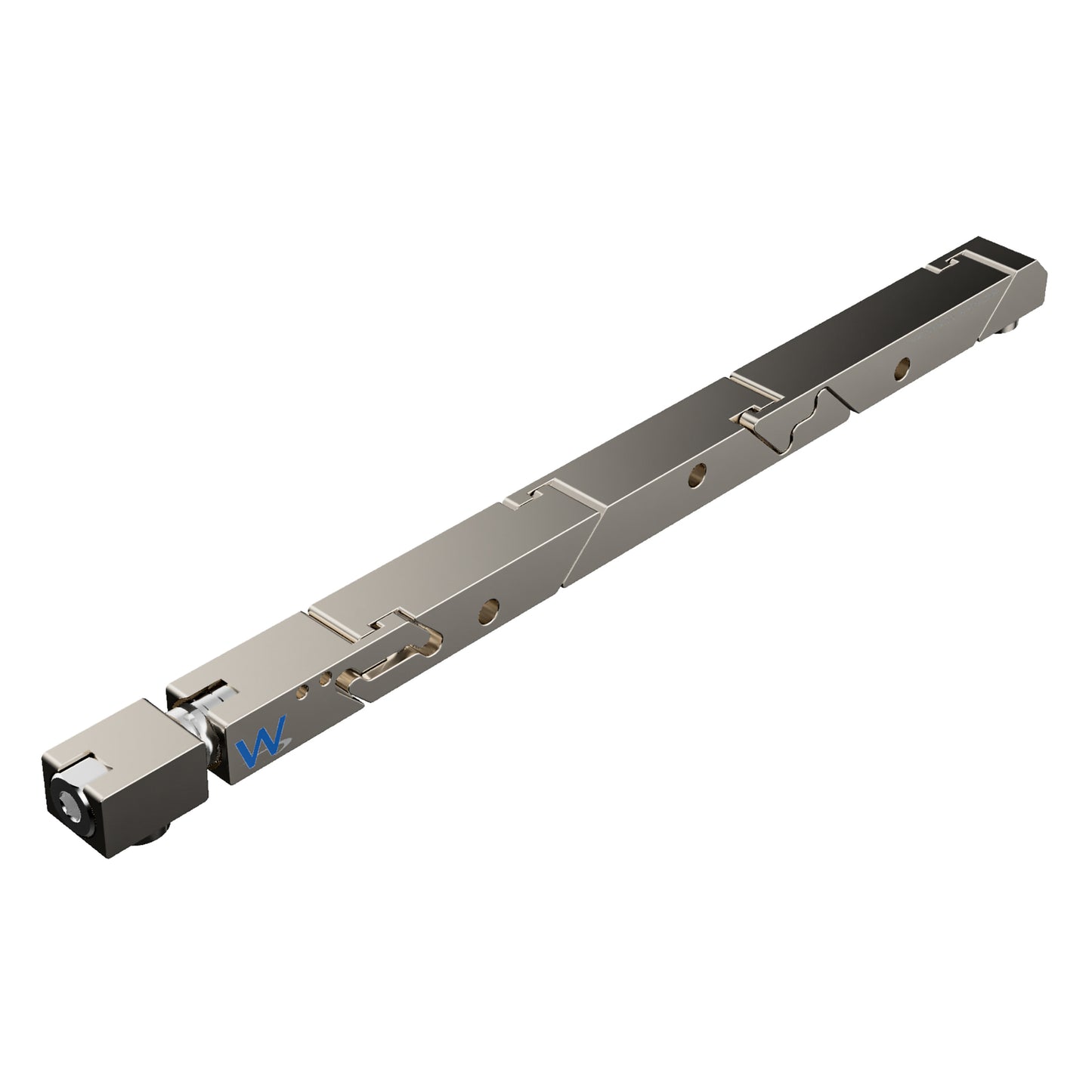

SW5-455-250-300 ハイフォースビッグボス #8

1 5


5 つのアクティブ セグメント
0.250" プロファイル高さ
0.300" プロファイル幅
カードエッジごとの熱抵抗 0.13 °C/W

在庫あり (Est: 8-16 Weeks)

通常価格 $89.57 USD/ea
通常価格 セール価格 $89.57 USD
セール 売り切れ

Product Details

Product Features

800 lb Clamping Force
Mass: 19 g
#8 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 8-15 in-lbs

Material Specifications

Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
