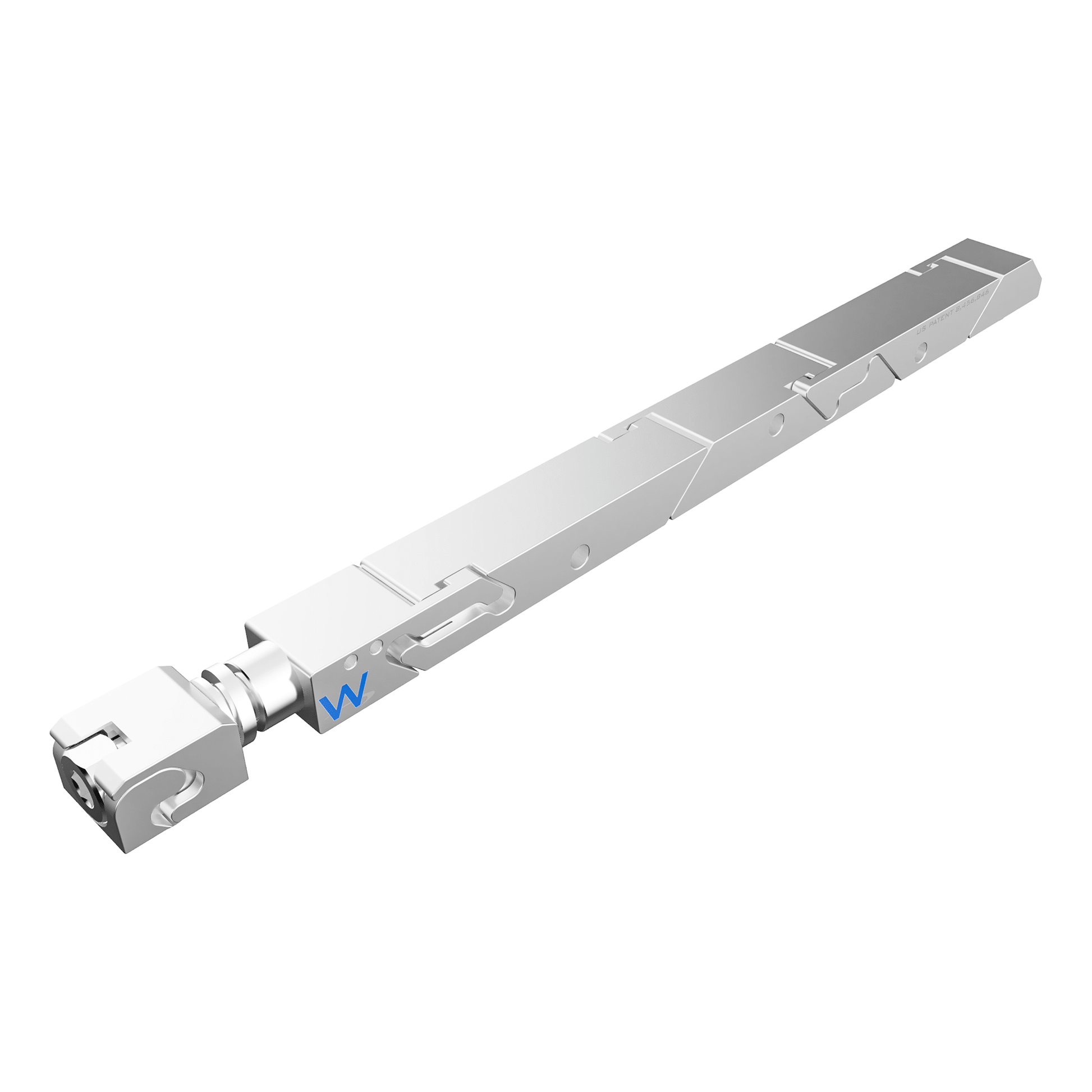

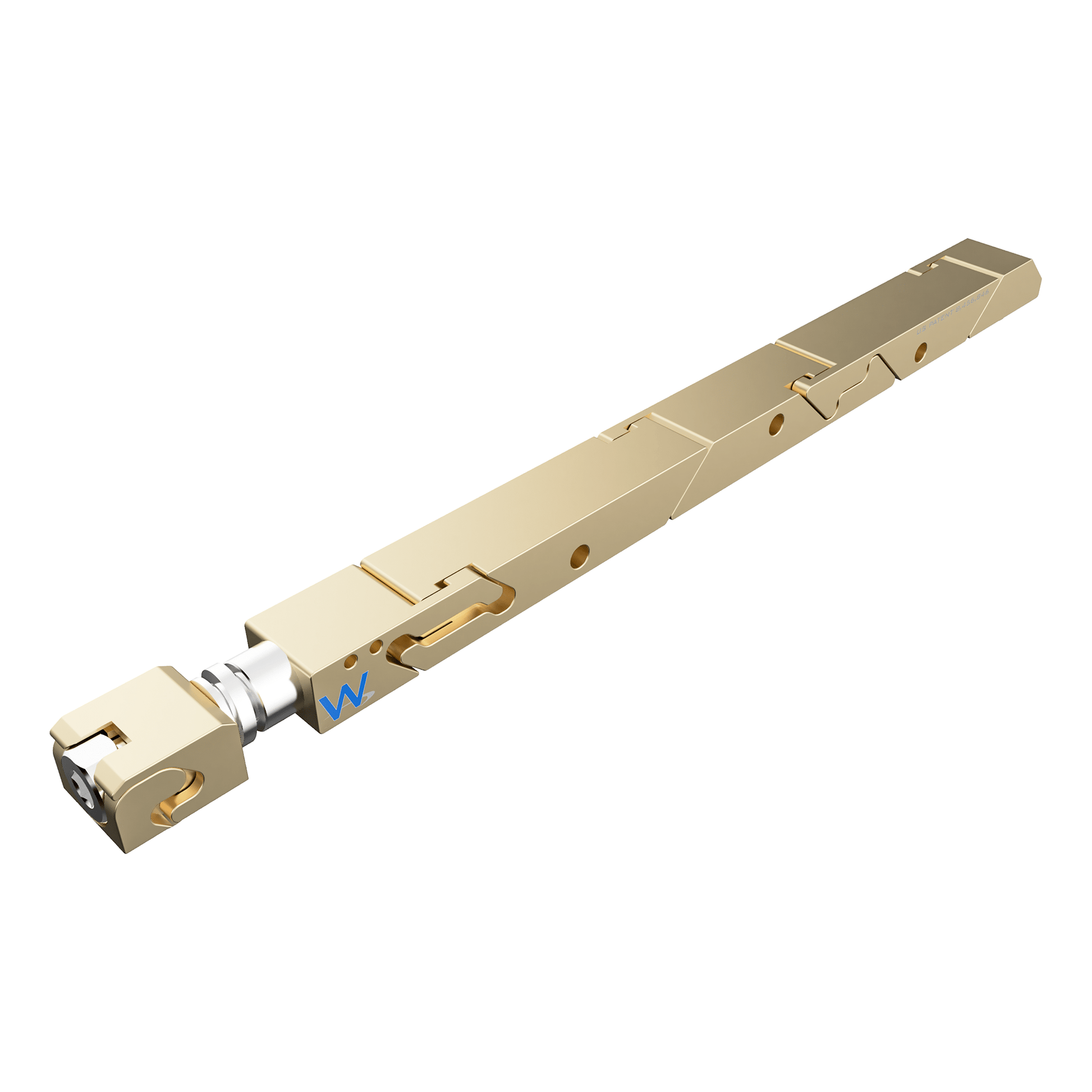

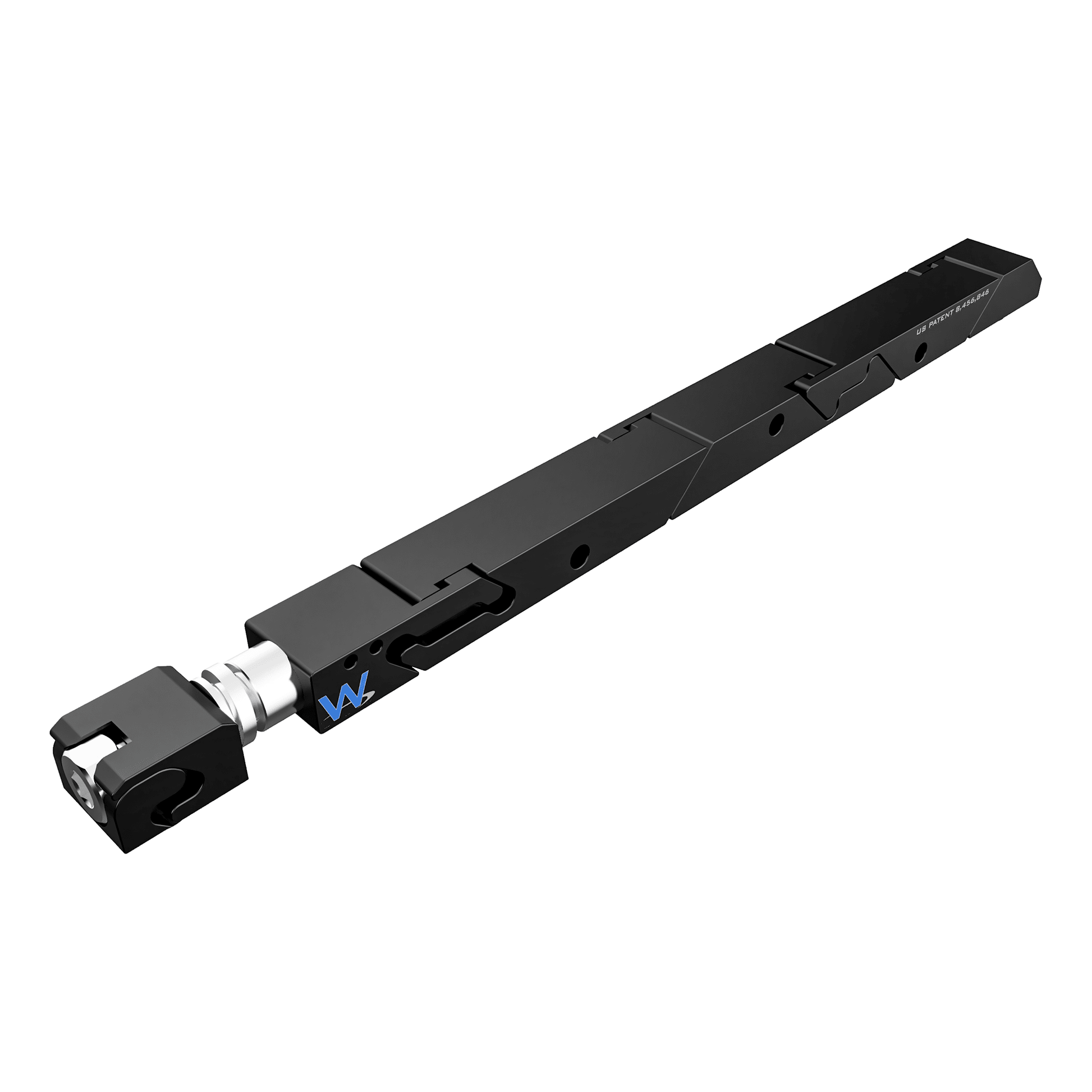

SW7-455-260-365 Hoge kracht grote baas Belleville

Ga direct naar productinformatie
1 van 5

SKU:SW7-455-260-365-332-BA-B075-BV

Belleville wasmachine-upgrade
Maximale klemkracht van 1000 lb
7 actieve segmenten
4,55" montageafstand
0,260" profielhoogte
0,365" profielbreedte
0,1 °C/W thermische weerstand per kaartrand

Op voorraad (Est: 8-16 Weeks)

Normale prijs $100.24 USD/ea
Normale prijs Aanbiedingsprijs $100.24 USD
Aanbieding Uitverkocht
Alle details bekijken

Product Details

Product Features


1000 lb Clamping Force
Mass: 22 g
#8 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 8-15 in-lbs

Material Specifications


Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
