SWT5-455-270-250 Maksymalna siła OGRANICZENIE MOMENTU OBROTOWEGO

1 3
  • ISO 9001 Compliance Badge
  • DFARS Compliance Badge
  • REACH Compliance Badge
  • RoHS Compliance Badge

SWT3-27-330-330-332-BHT-20D

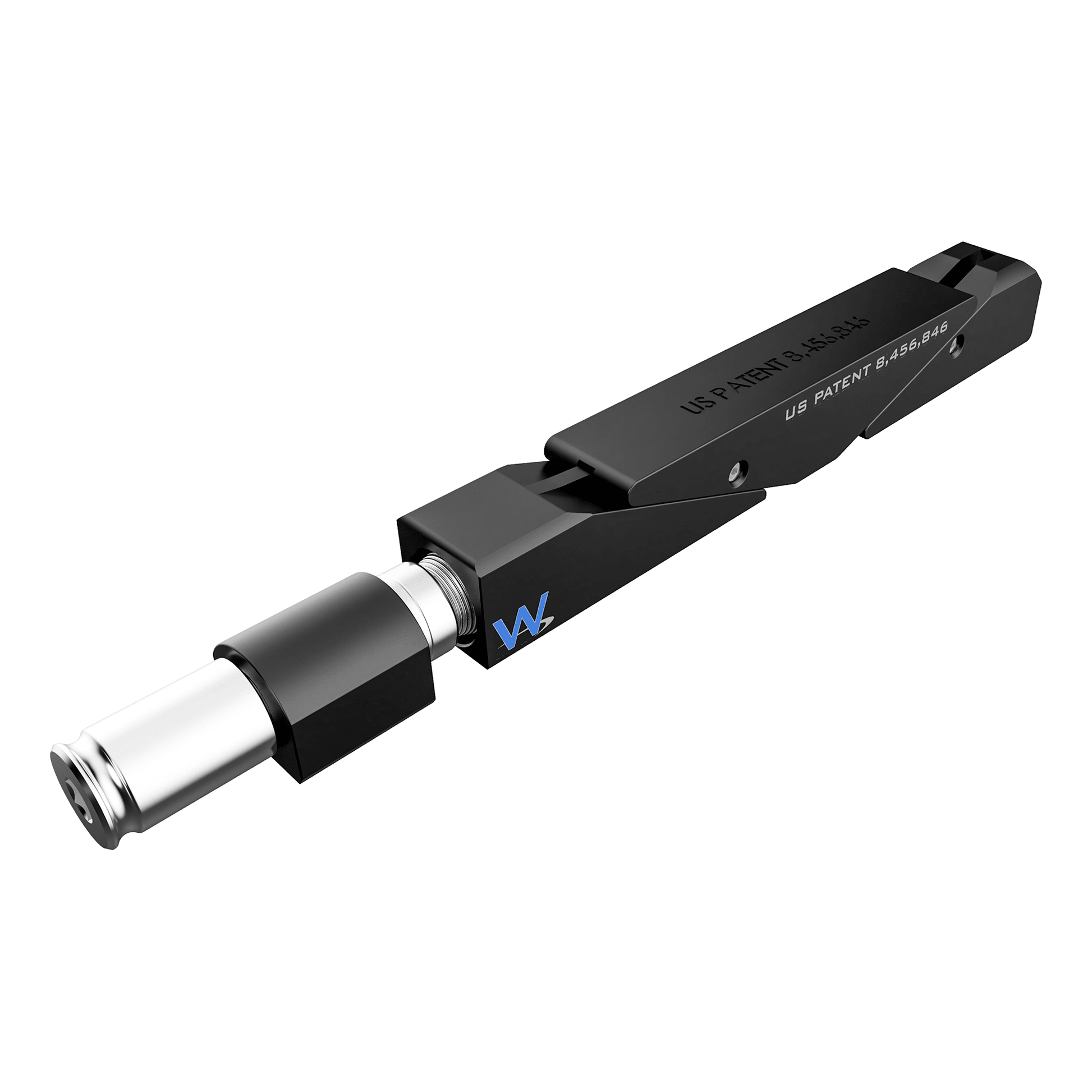

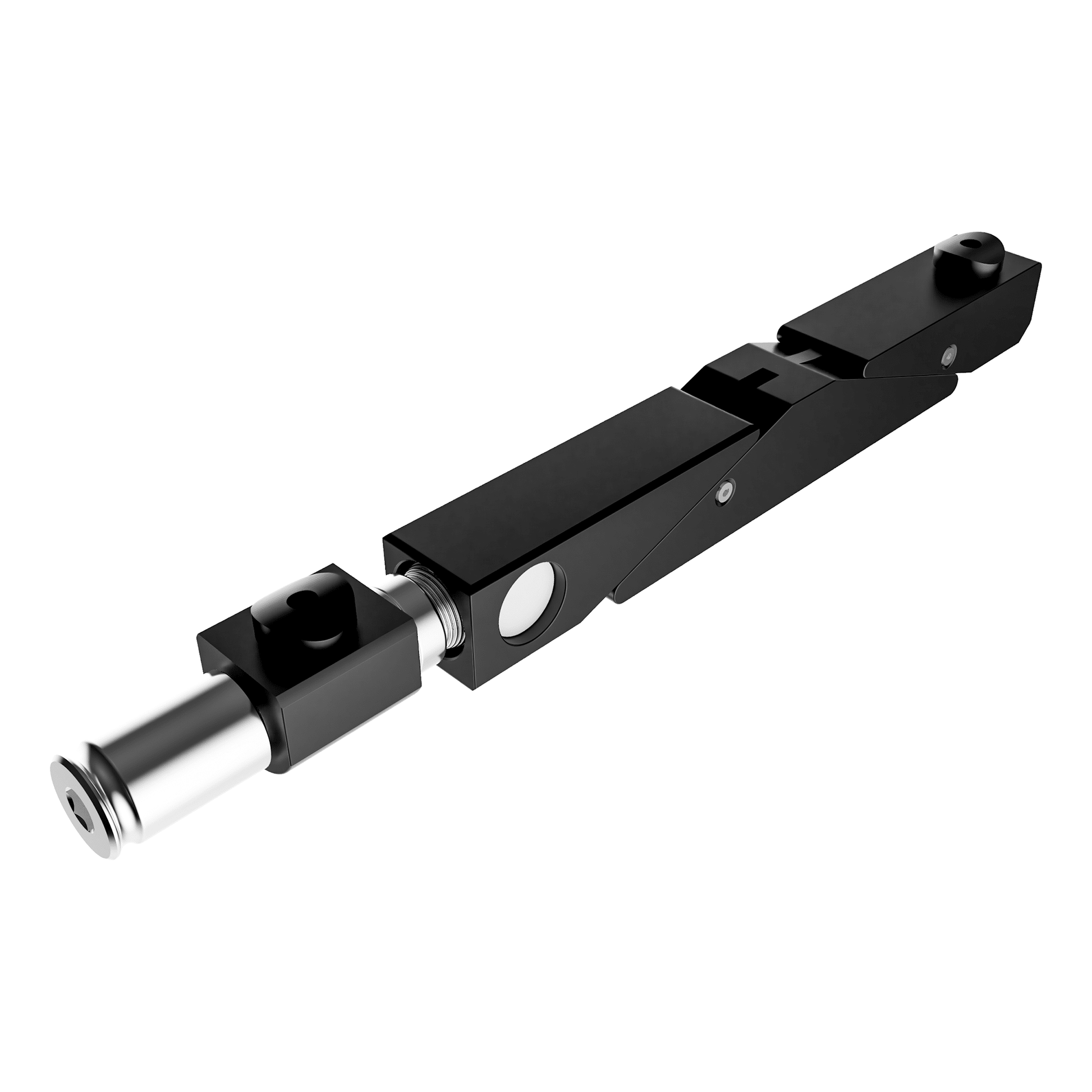

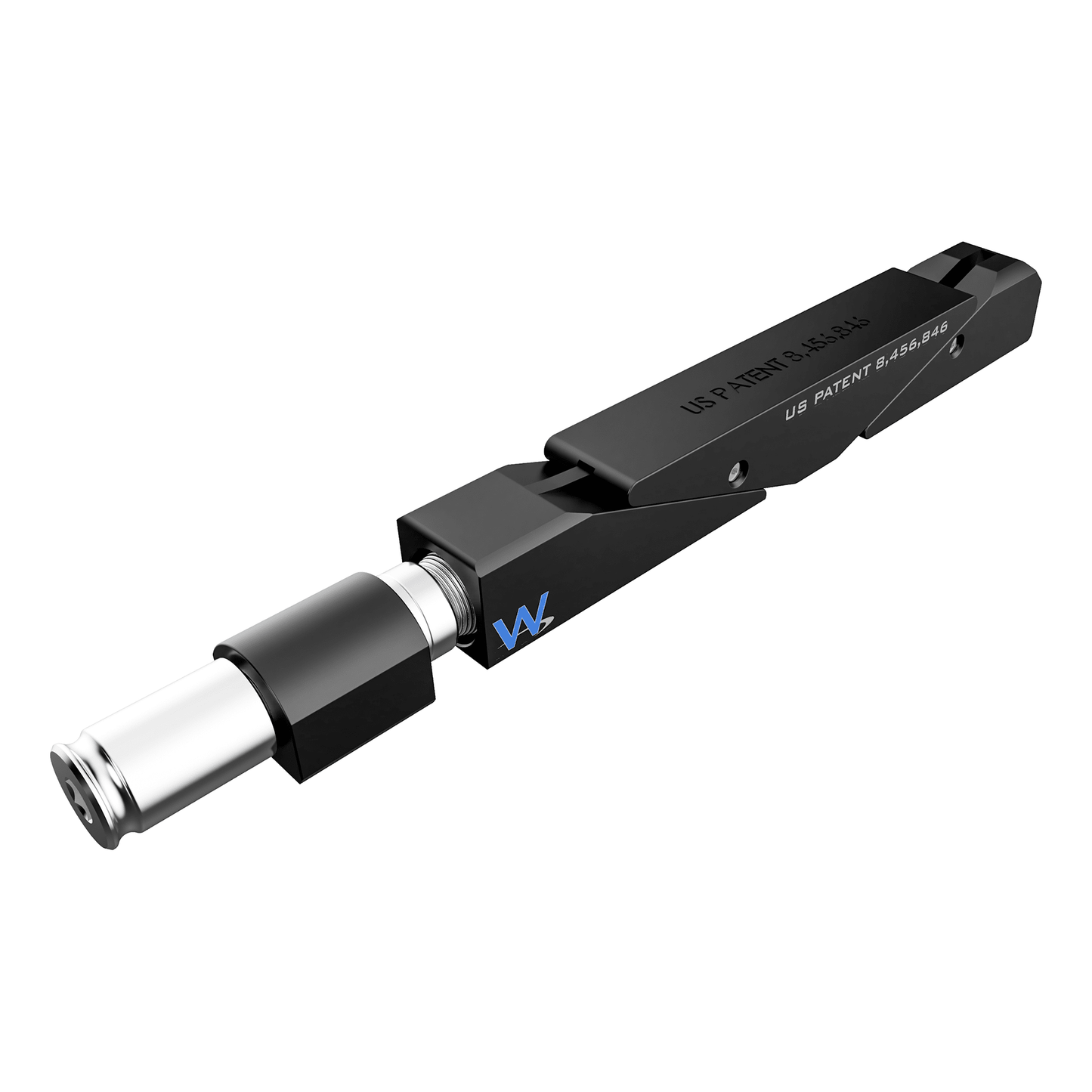

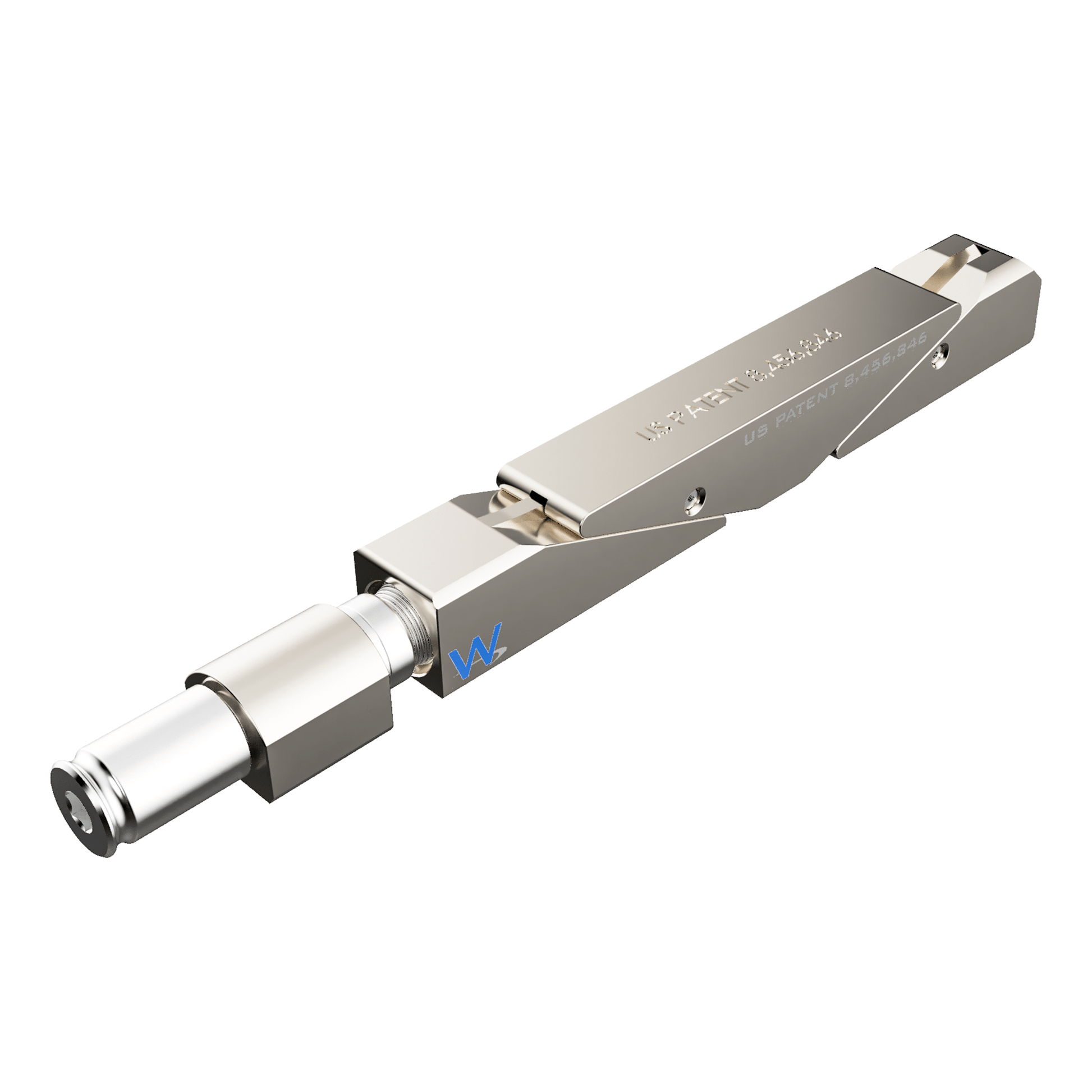

Mechanizm zapadkowy z ogranicznikiem momentu obrotowego
8 +/-1 in-lb Limit momentu obrotowego
Dźwiękowa + Dotykowa Informacja Zwrotna
Maksymalna siła zacisku 800 funtów
3 aktywne segmenty
4,55" Odległość montażu
Wysokość profilu 0,270"
Szerokość profilu 0,250"
0,12 °C/W Opór cieplny na krawędzi karty

$175.29 USD/ea
$175.29 USD
W promocji Wyprzedane
Pokaż kompletne dane

Product Details

Product Features

Torque Limited Expansion
Full Torque Contraction
Ideal for 2 Level Maintenance (2LM)
Audible + Tactile Ratchet Feedback
RoHS + REACH + ITAR Compliant
Low Profile Design
Torque Limiting Slip Clutch Ratchet
Mass: 17g
6/32 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for VITA Specifications
Models Available for Download

Material Specifications

MECHANISM MATERIALS
Screw, Pin, Clip: 300 Series Stainless Steel (passivated per AMS - 2700)
Drive Head, Flat Washer: Nitronic 60
Plastic Washer: PEEK
Spring: 17-7 SS
Lubrication: MIL-PRF-27617, Vacuum

WEDGELOCK MATERIALS
Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Lock Nut: Nitronic 60

WaveTherm Advantage

The Torque Limiting SOLIDWEDGE™ limits torque as the SOLIDWEDGE™ is expanded, creating consistent clamping forces for maintainers without the need for torque drivers or specialized tools. The slip clutch ratchet mechanism prevents over-tightening and provides audible feedback when the specified torque is reached. Torque is not limited in reverse, ensuring retraction of the SOLIDWEDGE™.
