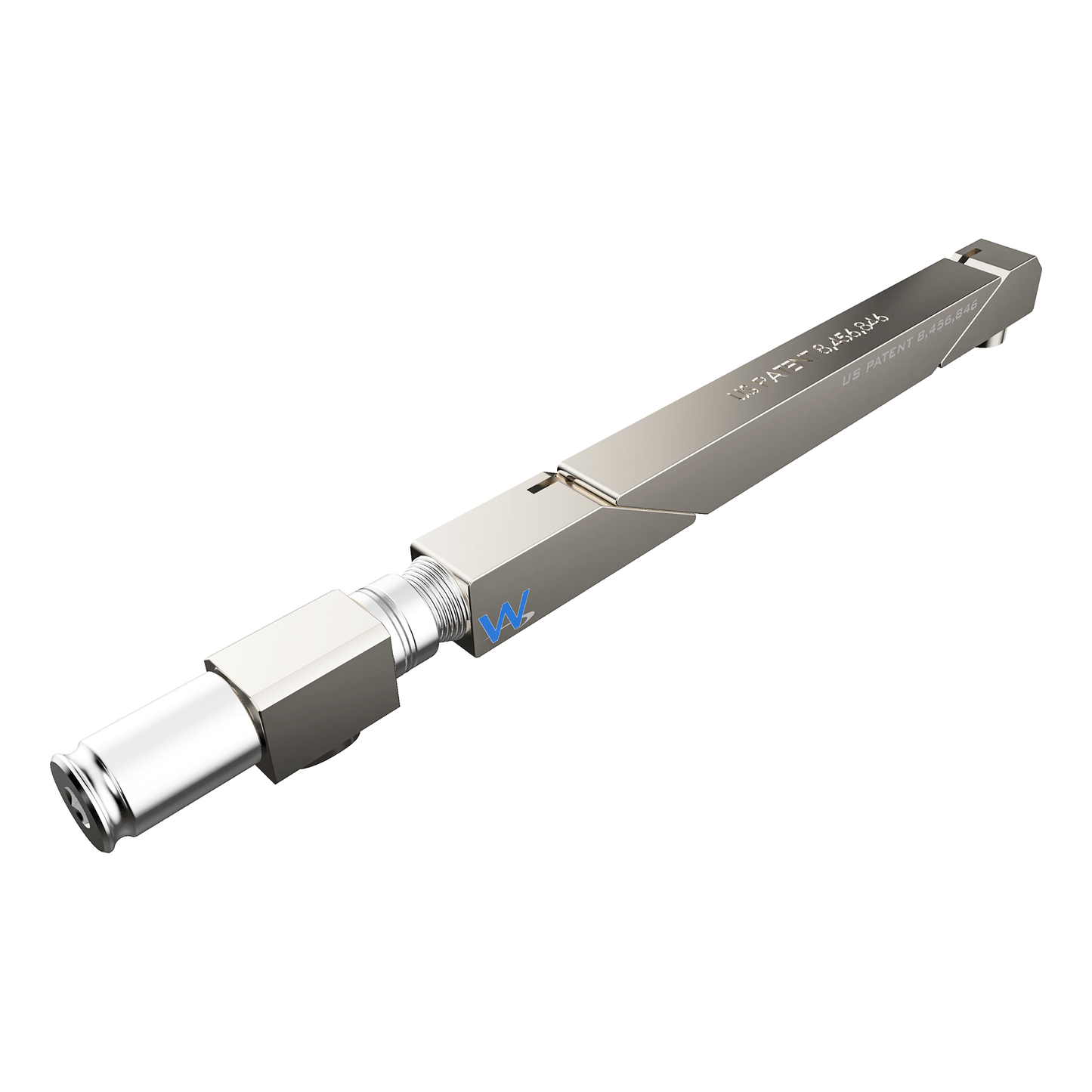

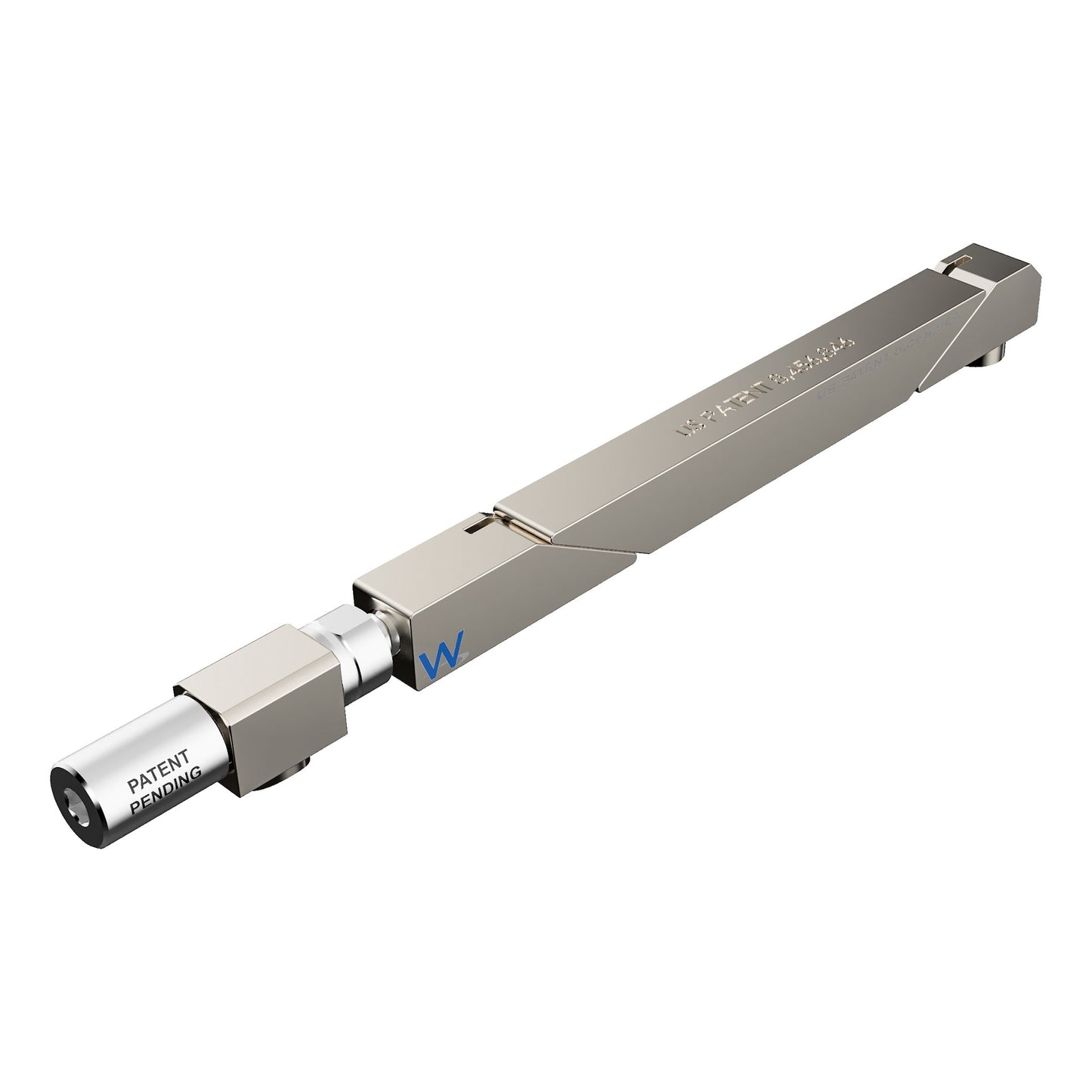

SWT3-32-270-250 Maksymalna siła OGRANICZENIE MOMENTU OBROTOWEGO

Torque Limited Expansion
Full Torque Contraction
Ideal for 2 Level Maintenance (2LM)
Audible + Tactile Ratchet Feedback
RoHS + REACH + ITAR Compliant
Low Profile Design
Torque Limiting Slip Clutch Ratchet
600 lb Clamping Force
Mass: 14 g
6/32 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for VITA Specifications
Models Available for Download

MECHANISM MATERIALS
Screws, Nuts, Clip, Washers:
300 Series Stainless Steel
(passivated per AMS - 2700)
Drive Head: Nitronic 60
Lubrication: MIL-PRF-27617, Vacuum

WEDGELOCK MATERIALS
Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Screws, Nuts, Washers:
300 Series Stainless Steel
(passivated per AMS - 2700)
Helicoil Wire Insert; Nitronic 60

The Torque Limiting SOLIDWEDGE™ limits torque as the SOLIDWEDGE™ is expanded, creating consistent clamping forces for maintainers without the need for torque drivers or specialized tools. The slip clutch ratchet mechanism prevents over-tightening and provides audible feedback when the specified torque is reached. Torque is not limited in reverse, ensuring retraction of the SOLIDWEDGE™.
