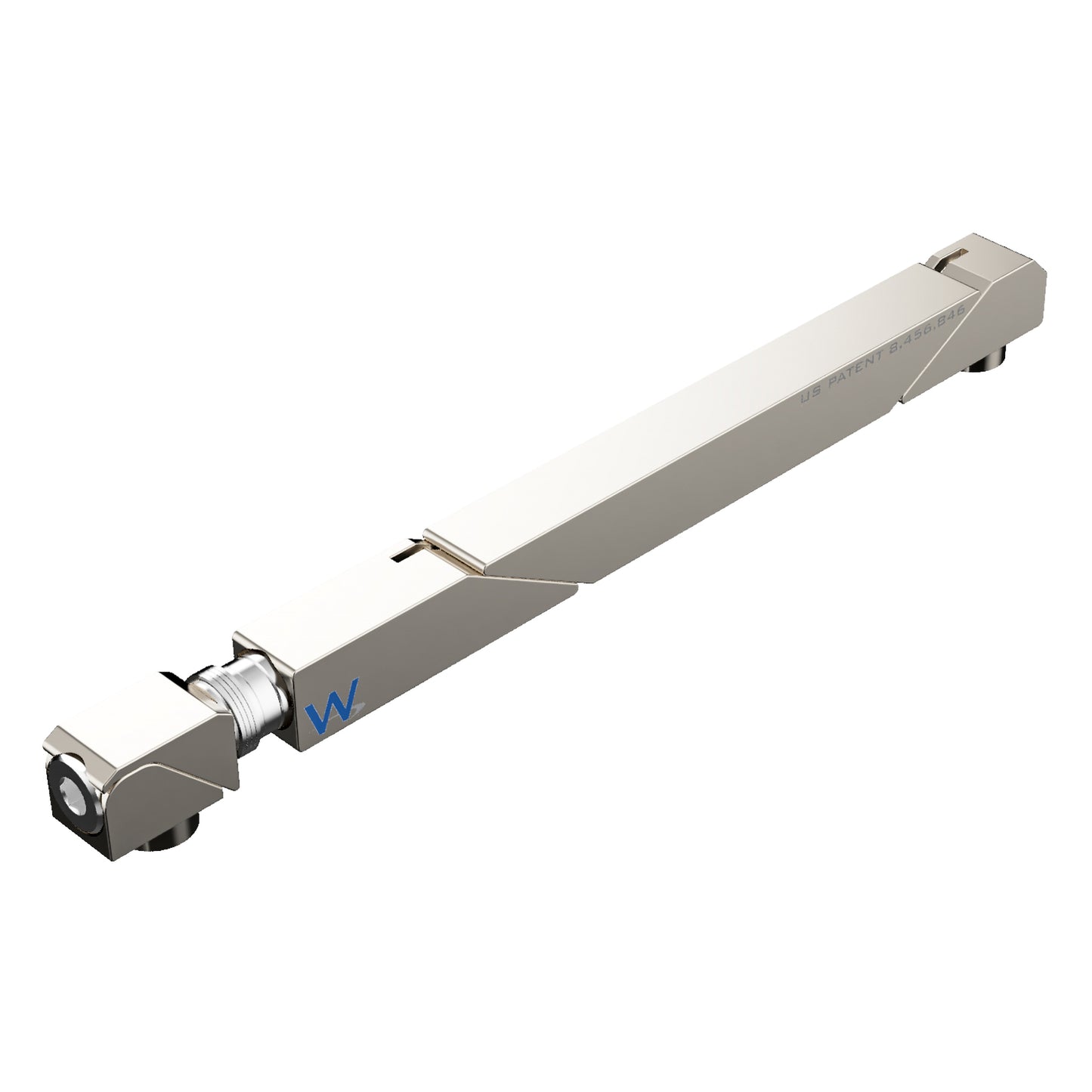

SW4-32-270-250 Max Force Big Boss Belleville

700 lb Clamping Force
Mass: 12 g
Helicoil Insert
Belleville Spring Washers
#6 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 6-10 in-lbs

Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)
Helicoil Wire Insert: Nitronic 60

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.
