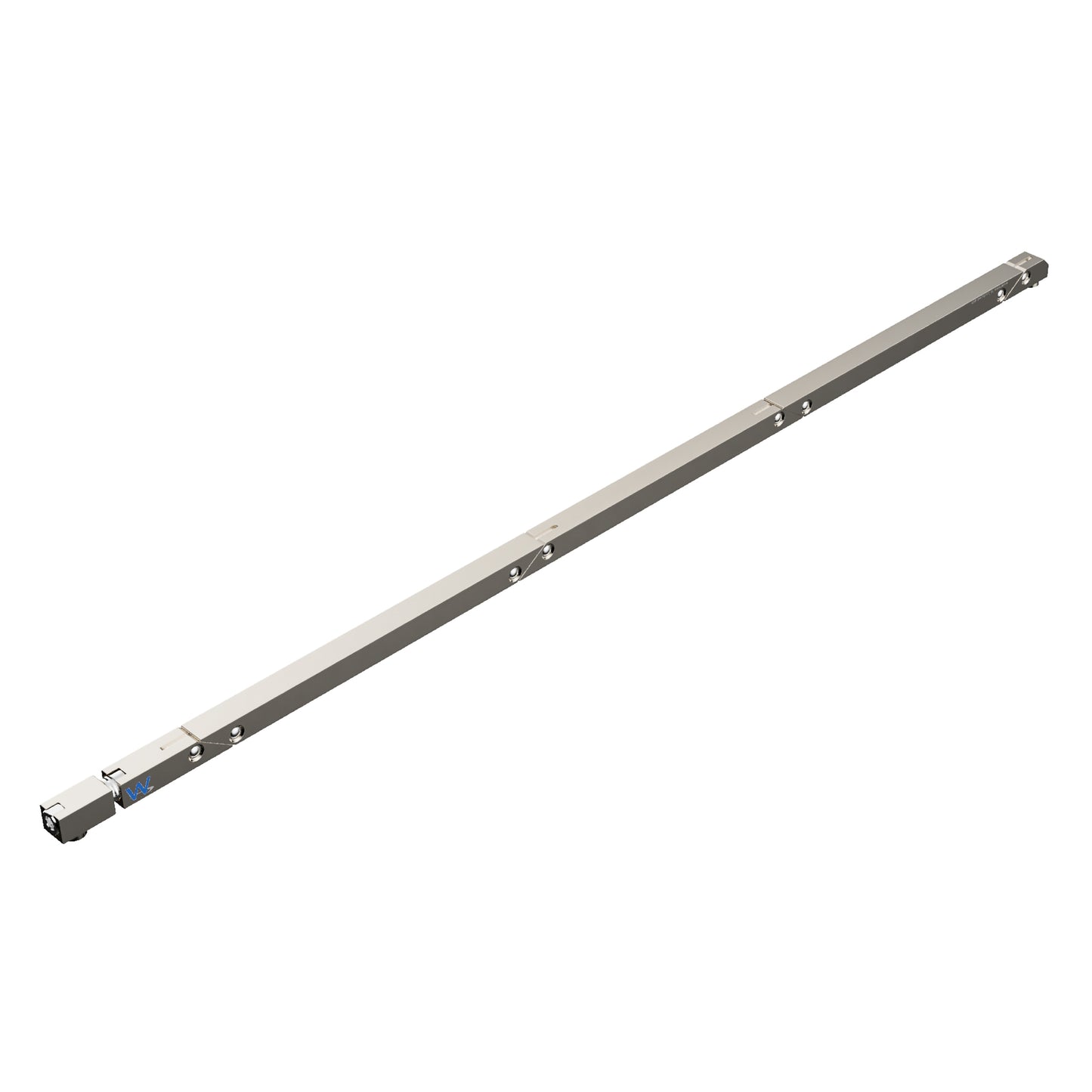

SW5-180-375-375 MAGNUM

Skip to product information
1 of 5


Belleville Washer Upgrade
Helicoil Insert Drive Wedge
1800lb Max Clamping Force
5 Active Segments
18" Mounting Distance
0.375" Profile Height
0.375" Profile Width
0.08 °C/W Thermal Resistance per Card Edge

Built to Order (Est: 8-16 Weeks)

Regular price $202.12 USD/ea
Regular price Sale price $202.12 USD
Sale Sold out
View full details

Product Details

Product Features

1800 lb Clamping Force
Mass: 123 g
Helicoil Insert
Belleville Spring Washers
#10 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 15-30 in-lbs

Material Specifications

Active Wedge Segments: 6061-T6511
Front Mounting Block: 7075-T7351
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)
Helicoil Wire Insert: Nitronic 60

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
