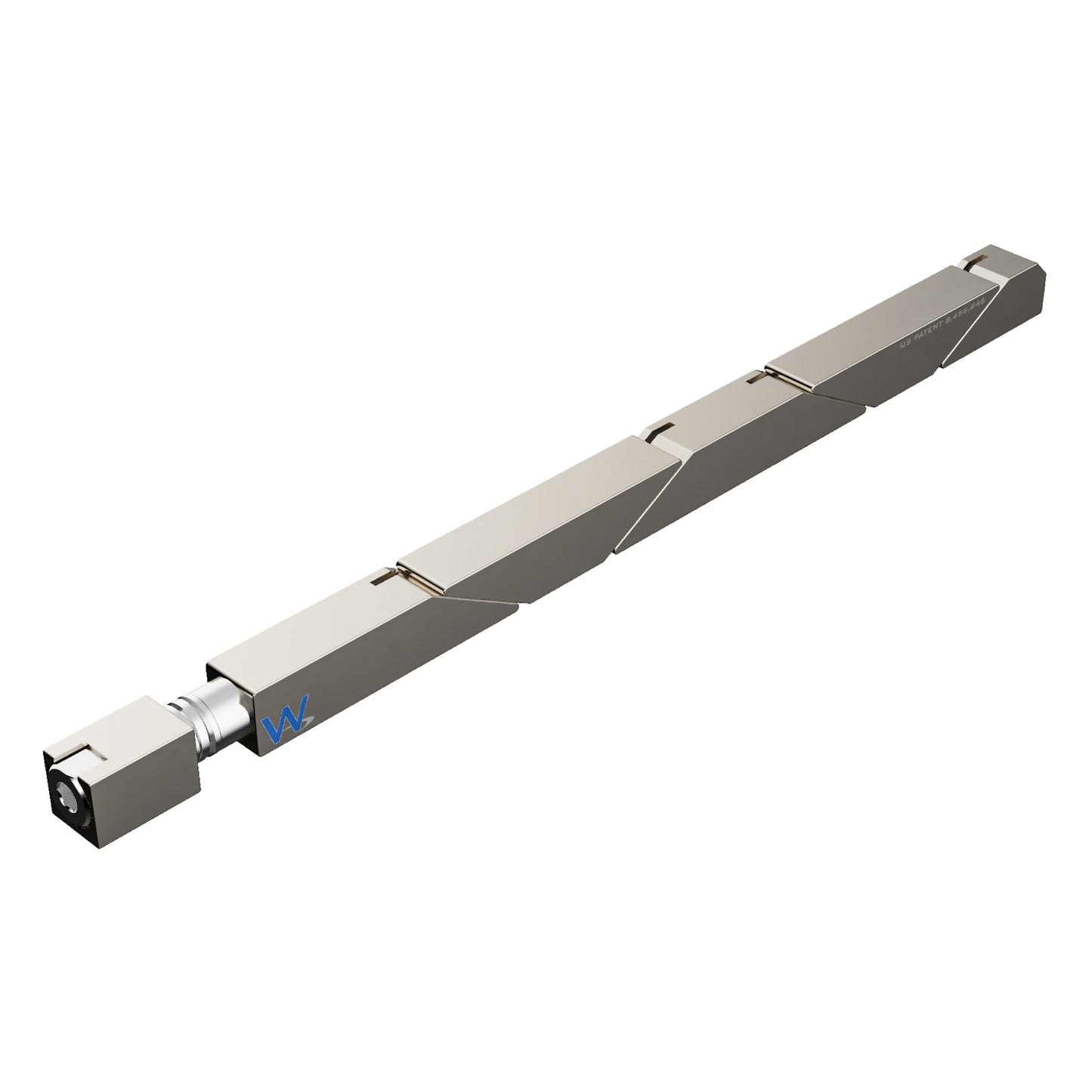

SW5-475-270-250 Max Force Big Boss

Skip to product information
1 of 5

SKU:SW5-475-270-250-332-BA-30D-B075

Helicoil Insert Drive Wedge
1000lb Max Clamping Force
5 Active Segments
4.75" Mounting Distance
0.270" Profile Height
0.250" Profile Width
0.1 °C/W Thermal Resistance per Card Edge

Built to Order (Est: 8-16 Weeks)

Regular price $101.64 USD/ea
Regular price Sale price $101.64 USD
Sale Sold out
View full details

Product Details

Product Features


1000 lb Clamping Force
Mass: 17 g
Helicoil Insert
#6 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 6-10 in-lbs

Material Specifications


Active Wedge Segments: 6061-T6511
Front Mounting Block: 7075-T7351
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)
Helicoil Wire Insert: Nitronic 60

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
