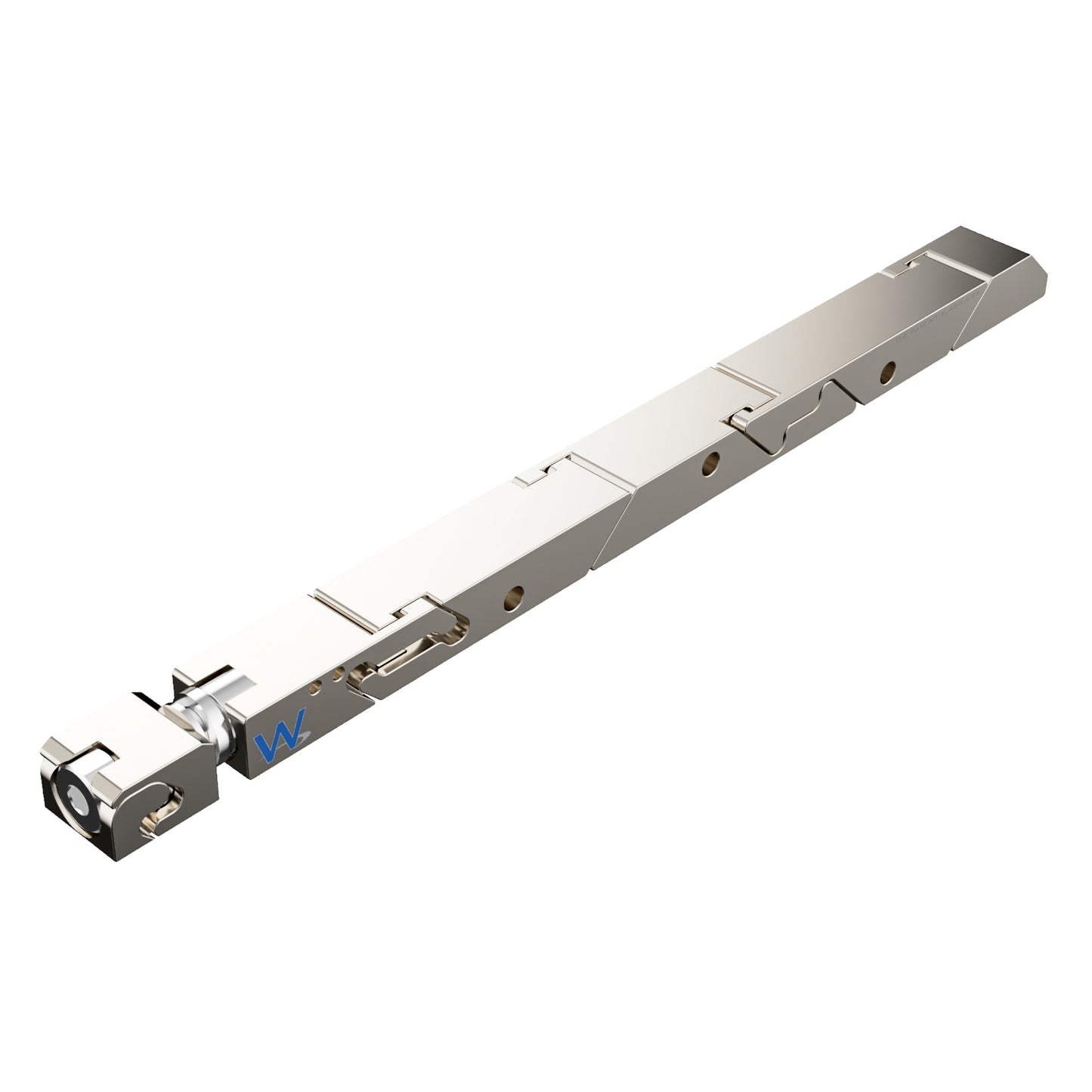

SW7-475-260-365 High Force

Gå til produktinformasjon
1 av 5

SKU:SW7-475-260-365-332-BA

1000lb Maks klemkraft
7 aktive segmenter
4,75" monteringsavstand
0,260" profilhøyde
0,365" profilbredde
0,09 °C/W termisk motstand per kortkant

Bygget på bestilling (Est: 8-16 Weeks)

Vanlig pris $100.24 USD/ea
Vanlig pris Salgs pris $100.24 USD
Salg Utsolgt
Se alle detaljer

Product Details

Product Features


1000 lb Clamping Force
Mass: 28 g
#8 Drive Screw
Zero Insertion Force
Low Profile Design
Self-Retracting Segments
Superior Plating Endurance
Optimized for Vita Specifications
Models Available for Download
Torque to 8-15 in-lbs

Material Specifications


Active Wedge Segments: 6061-T6511
Front Mounting Block: 6061-T6511
Screws, Nuts, Washers: 300 Series Stainless Steel (passivated per AMS-2700)

WaveTherm Advantage

The SOLIDWEDGE™ wedgelock design provides three times the thermal contact area of conventional wedge locks.

The design also features a larger screw size, which creates higher contact forces between the heat frame and cold wall surfaces, significantly improving thermal performance.

The interconnected links of the SOLIDWEDGE™ feature positive retraction of all segments without the use of springs or other mechanisms.

Learn more by clicking the FAQ button in the product description.
